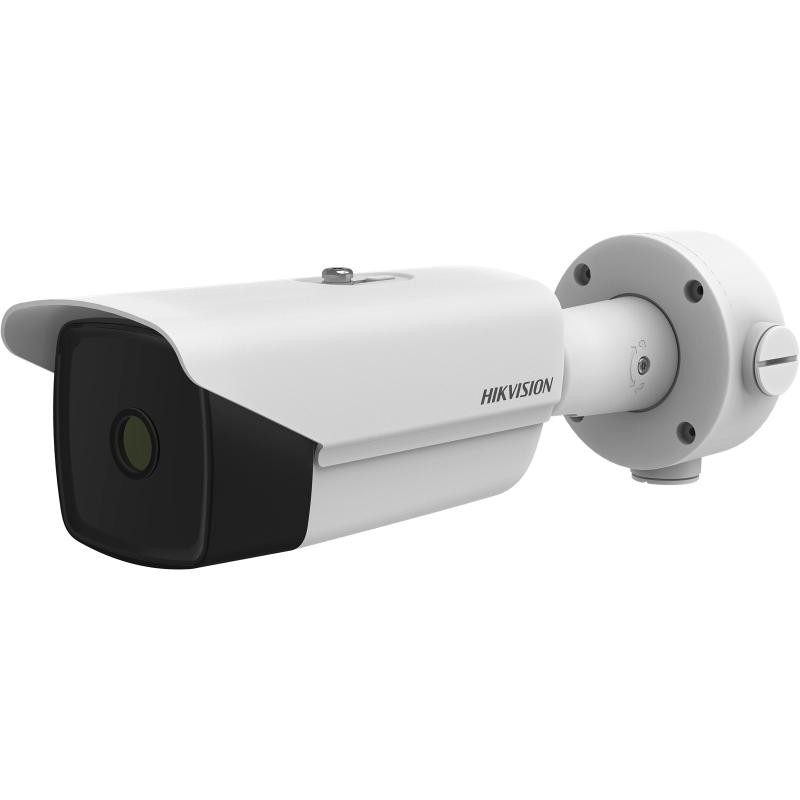

Hikvision Thermographic Network Bullet Camera DS-2TD2167T-7/P

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 640 × 512; Pixel Pitch: 17 μm; Spectral Range: 8 μm to 14 μm; NETD: < 35 mk (25 °C, F# = 1.0); Focal Length: 6.5 mm; IFOV: 2.62 mrad; Field of View: 88.5° × 73.2° (H × V); Min. Focusing Distance: 0.6 m; Aperture: F 1.0; Digital Zoom: ×2, ×4, ×8; Target Coloration: Yes. Supported in white hot and black hot mode.; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).; Temperature Range: - 20 °C to 550 °C (- 4 °F to 1022 °F); Temperature Accuracy: Max (± 2 °C, ±2 %); Fire Detection: Dynamic fire detection, up to 10 fire points detectable.; Main Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288); Sub-stream: 25 fps (704 × 576, 640 × 512, 352 × 288); Third Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288); Video Compression: Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG; Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,SSL; API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T); Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering; Simultaneous Live View: Up to 20 channels; Client: iVMS-4200, Hik-Connect; Web Browser: Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Alarm Input: 2, alarm input (0-5 VDC); Alarm Output: 2, alarm output (alarm response actions configurable); Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage; Audio Input: 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: Linear level, impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface (half duplex); Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, 24VDC, two-core terminal block  PoE (802.3af, class 3); Power Consumption: 18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W 24VDC: 0.21A, max 5 W PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W; Working Temperature/Humidity: Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 90% or less; Protection Level: IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection Ik10 rated housing; Dimensions: 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53"); : Approx. 1.77 kg (3.90 lb); VCA Range for Humans: 49 m; VCA Range for Vehicles: 147 m
