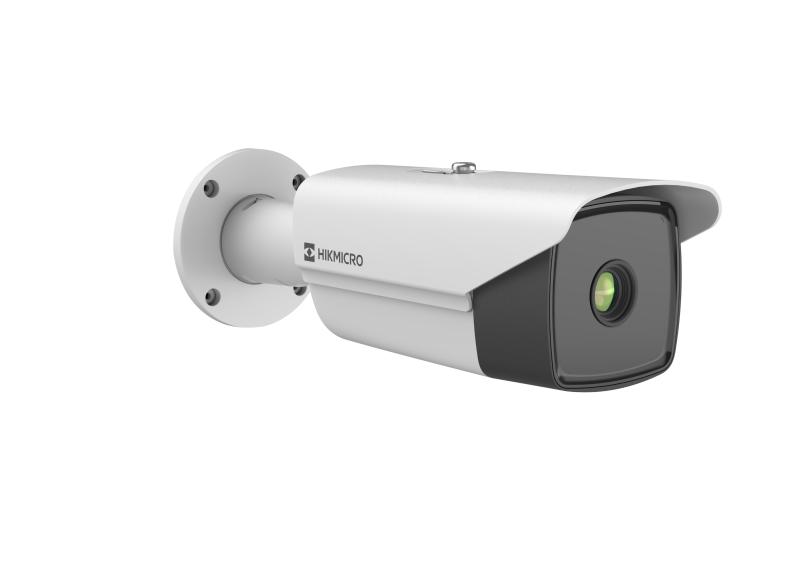

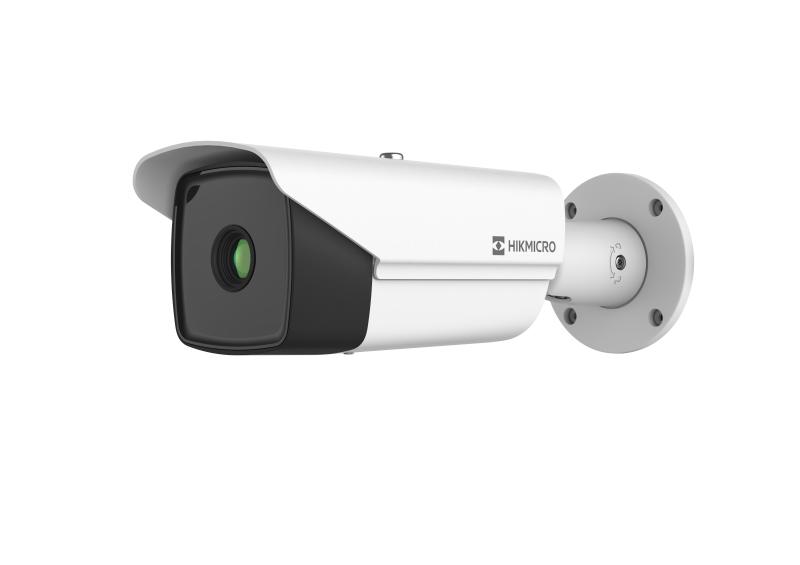

Hikvision Thermographic Network Bullet Camera HM-TD2168T-5/G0/T1Y

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 640 x 512; Pixel Pitch: 12 μm; NETD: ≤ 20 mK (@25° C,F# = 1.0); Focal Length: 5.2 mm; IFOV: 2.31 mrad; Aperture: F1.0; Field of View: 90° × 70.1° (H × V); Min. Focusing Distance: 0.8 m; Digital Zoom: ×2, ×4，×8; Target Coloration: Yes. Supported in white hot and black hot mode.; EIS: Support, mutually exclusive with all smart functions except VCA function; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line); Temperature Range: -20 °C to 650 °C (-4 °F to 1202 °F); Temperature Accuracy: Max (± 2 °C, ±2 %); Fire Detection: Dynamic fire detection, up to 10 fire points detectable; Smoking Detection: Up to 10 smoking points detected; Main Stream: 25 fps (1280×720P， 704×576， 640×512，352×288); Sub-stream: 25 fps (704 × 576, 640 × 512, 384 × 288); Third Stream: 25 fps (1280×720P， 704×576， 640×512，352×288); Video Compression: Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG; Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM; Color Palettes: 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer); Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS; Network Storage: MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); API: ISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP; Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Alarm Input: 2, alarm input (0-5 VDC); Alarm Output: 2-ch, relay outputs (alarm response actions configurable); Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage; Audio Input: 1, 3.5 mm Mic in/Line in interface
Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: Linear level, impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex); Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC; Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block
PoE (802.3af, class 3); Power Consumption: 24 VAC ± 25%: 0.33 A to 0.55 A, max. 6.9 W
12 VDC ± 25%: 0.8 A to 1.33 A, max. 6.1 W
PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 6.6 W; Working Temperature/Humidity: Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 95% or less; Protection Level: IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
NEMA 4X anti-corrosion housing; Dimensions: 351.3 mm × 115.2 mm × 113.9 mm; : 1.77 kg (3.9 lb); VCA Range for Humans: 65 m; VCA Range for Vehicles: 150 m; EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7); Safety: CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
LOA: SANS/IEC 60950-1; Environment: CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006; Protection: IP67: IEC 60529-2013
IK10: IEC 62262-2002; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
