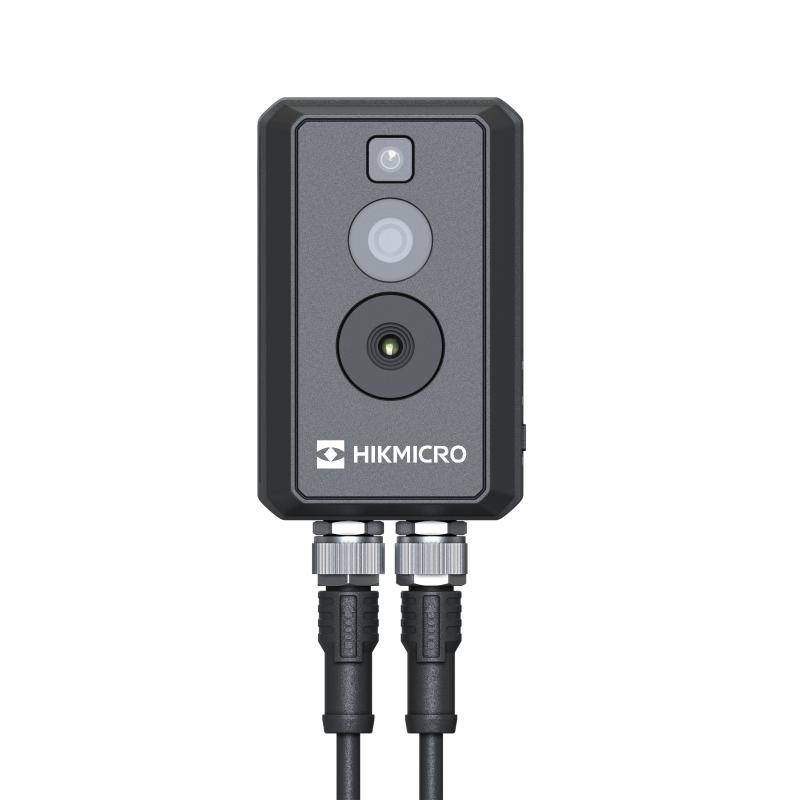

Hikvision Thermography Cube Camera HM-TD3028T-3/Q(B)

Specifications

Image Sensor: VOx Uncooled Focal Plane Arrays; Resolution: 256 x 192; Pixel Interval: 12 μm; Response Waveband: 8 μm to 14 μm; NETD: Less than 40 mK (@25°C, F# = 1.0); Focal Length: 3.6 mm; Focus Mode: Athermalized; Field of View: 50° × 37.2° (H × V); IFOV: 3.33 mrad; Image Frequency: 25 fps; Aperture: F 1.0; Min. Focusing Distance: 0.3 m; Image Sensor: 1/5“ Progressive Scan CMOS; Resolution: 2688 × 1520; Focal Length: 1.4 mm; Min. Illumination: 0.06 Lux @ (2.2, AGC ON)，0 Lux with IR; Field of View: 96.9° × 77.2°(H × V); Aperture: F 2.2; Image Fusion: Fusion view of thermal view and overlaid details of the optical channel; Digital Zoom: 2×, 4×; Menu language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; Power Supply: 12 VDC, Max. 5 W
PoE (802.3af, class 2); Working Temperature and Humidity: -20 °C to 60 °C (-4 °F to 140 °F)
95% or less; Protection level: IP67; : Approx. 335 g (0.74 lb); Dimension: 56 mm × 38.9 mm × 111.2 mm (2.20″ × 1.53″ × 4.38″); Main Stream: Thermal channel: 25 fps (1280 × 960)
Optical channel: 25 fps (2688 × 1520); Sub Stream: Thermal channel: 25 fps (704 × 576)
Optical channel: 25 fps (704 × 576); Image Setting: Rotate mode, brightness, contrast and AGC adjustable by client software or web browser; Video Compression: H.264 (Baseline/Main/High Profile) /MJPEG/H.265; Video Bit Rate: 256 Kbps to 16 Mbps; Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F), 0 °C to 550 °C (32 °F to 1022 °F); Temperature Accuracy: Max (± 2 °C, ± 2%); Temperature Measurement Rules: Display Max. and Min. temperature in live view;
3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).; Alarm Trigger: Video tampering alarm, Network disconnected, IP address conflict, Illegal login, HDD full, HDD error; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter; API: ISAPI, SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G); Communication Interface: 1, RJ45 Ethernet port,10M/100M/1000M
1, RS-485 interface; Alarm: 2-ch relay output, alarm response actions configurable; External Optics Correction: Support Thermal Optical Transmittance and Manual Input External Optics Temperature;
Support Calibration Coefficient calculation; Temperature Info. Of Thermographic Rule: Real-time Output; Time Interval: 500 ms; Temperature Info. of Image: Real-time Output; Default is 4 fps, 32 bit × 640 × 512 per frame; 16 bit and 32 bit are selectable; Capture Thermal Graphic: 32 bit 160 × 120; Metadata Output: Max. 25 fps (16 bit 256 × 192); Lighting: Yes
