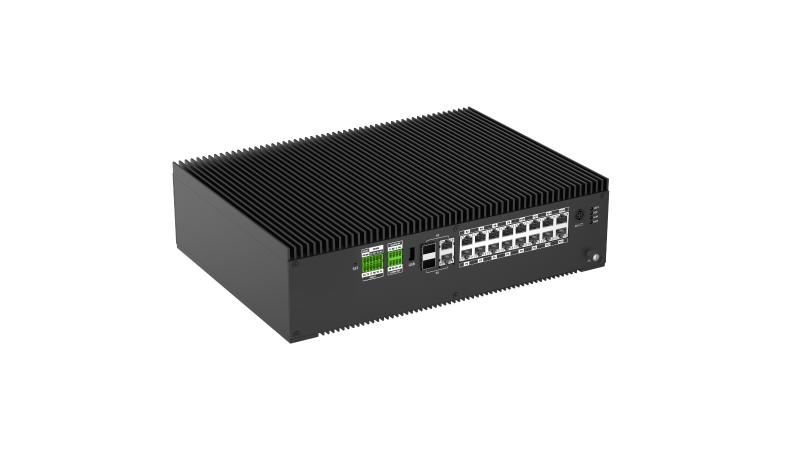

Hikvision Traffic Management Server DS-TP50-16R/4T

Specifications

Video Compression: H.264,H.265; Video Input: 16 CH access; up to 12MP resolution; Protocols: TCP/IP,UDP,IPv4/IPv6,ARP,ICMP,DHCP,802.1X,QoS,DNS,DDNS,SSL/TLS,HTTP,HTTPS,NTP,IGMP,RTP,RTSP,RTCP,FTP,SNMP,SSH2; API: ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,OTAP; Security: Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP; EAP-LEAP; EAP-MD5),Watermark,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1; User/Host: Up to 127 users,3 user levels: administrator, operator, and user; Client: Hik-Central Master,
Hik-Central Pro,
HikCentral Master Lite; Web Browser: chrome 89.0+; Network Interface: 16 x 1000 M Ethernet interface, 1 x internal 10/100/1000 M self-adaptive Ethernet interface, 1 x external 10/100/1000 M self-adaptive Ethernet interface, 1 x internal 1000 M fiber interface, 1 x external 1000 M fiber interface; Audio Input: 1; Audio Output: 1; Alarm Input: 2; Alarm Output: 2; RS-232 Interface: 2 (1 internal debugging，1 external debugging）; RS-485 Interface: 2; USB: 1 x USB3.0 (up to 5V 2A); Data Storage: Vehicle information (passing records and pictures) storage; Video Recording: Video recording function. Recording duration is determined by the stream size and the HDD capacity.; Data Uploading: ANPR and manual uploading; Network Settings: Able to set two-segment IP address; Operation System: Embedded Linux operating system; Operating GUI: WEB; HDD Storage: 4 x SATA (Each SATA interface supports up to 8TB HDD.); Indicator: 4 x indicator (1 x Power Indicator, 1 x Alarm Indicator, 1 x HDD Indicator, 1 x Ready Indicator); Weight: Approx. 5.69 kg (12.54 lb.); With Package Weight: Approx. 7.95 kg (17.53 lb.); Package Dimensions: 563 mm × 363 mm × 180 mm (22.1″ × 14.3″ × 7.1″) (L × W × H); Dimensions: 370 mm × 273 mm × 102.5 mm (14.6″ × 10.7″ × 4.03″) (L × W × H); Power: DC 12 V ± 10%, 6 A, max. 72 W; Operating Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing); Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing); EMC: CE-EMC: EN 55032: 2015+A11:2020+A1:2020, EN IEC61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021, EN 50130-4: 2011+A1: 2014; Safety: CB: IEC 62368-1:2014; CB: IEC 62368-1: 2018; CE-LVD: EN 62368-1:2014+A11:2017; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
