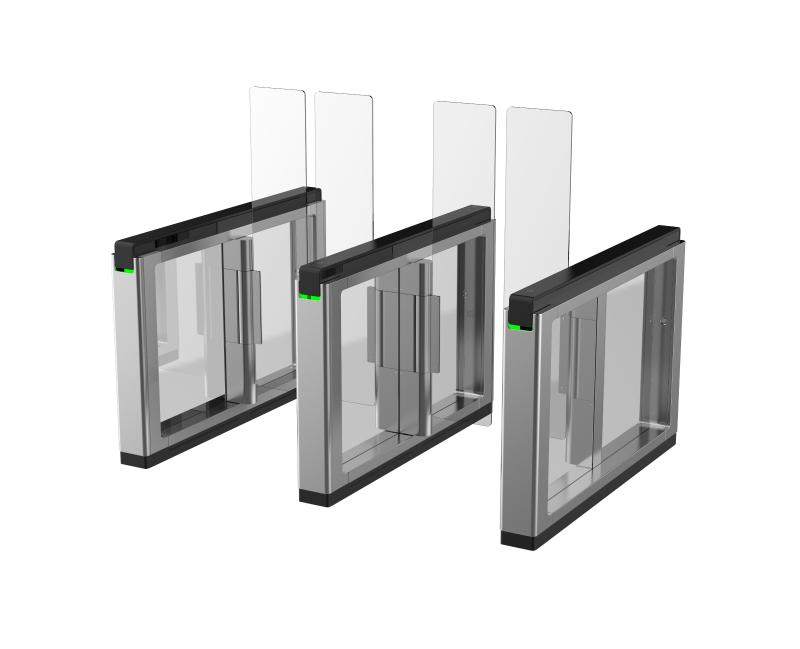

Hikvision Ultra Swing Barriers DS-K3B802BX-L/MPg-Dg65H12

Specifications

Motor: Servo motor; MCBF: ≥ 8 million times; Communication protocol: ISAPI,ISUP5.0; Wired network: 10/100Mbps self-adaptive Ethernet; Network interface: 1; Lock control: 2; Exit button: 2; Alarm output: 2; TAMPER: YES; RS-485: 4; RS-232: 2; Wiegand: 2; Fire alarm input: 1; Case input: 2; Access controller: Supplied; Supercapacitor: Supplied; Fingerprint capacity: 5,000 (optional); Card capacity: 1,000,000; Event capacity: 1,000,000; Configuration via Web browser: Support; Throughput: 30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method; IR light detectors: 24 pairs; Lane width: 550 mm to 1100 mm (21.65″ to 43.31″); Barrier material: Tempered glass; Pedestal material: SUS304 stainless steel with the thickness of 2 mm (0.08″); Power: 100 to 240 VAC; 50 to 60 Hz; Power consumption: 70W (stand by); Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 95% (No Condensing); Dimensions: With packaging: 1688 mm × 348 mm × 1318 mm (66.5″ × 13.7″ × 51.9″)
Without packaging: 1500 mm × 160 mm × 1010 mm (59.1″ × 6.3″ × 39.8″); : Not include door wings
(Net) Left: 99.34 kg (219.00 lbs) Middle: 108.8 kg (239.86 lbs) Right: 102.8 kg kg (226.64 lbs)
(Rough) Left: 147.8 kg (325.84 lbs) Middle: 157.26 kg (346.70 lbs) Right: 151.26 kg (333.47lbs); Approval: CE/CB/RoHS/REACH/WEEE; Lane width: 650;900; Pedestal length: 1500 mm; Module selection: YES; Pedestal width: 160 mm; Wall distance: 20 mm; Base: YES; Barrier material: Tempered glass; Application environment: Indoor; Authentication mode: Card;Face; Card type: EM;M1; Recommended width: 650 mm; Base model: DS-B802-BASE; Product type: Swing barrier; Remote controller type: 433Mhz;868Mhz; Movement Protrusion Width: 65 mm
