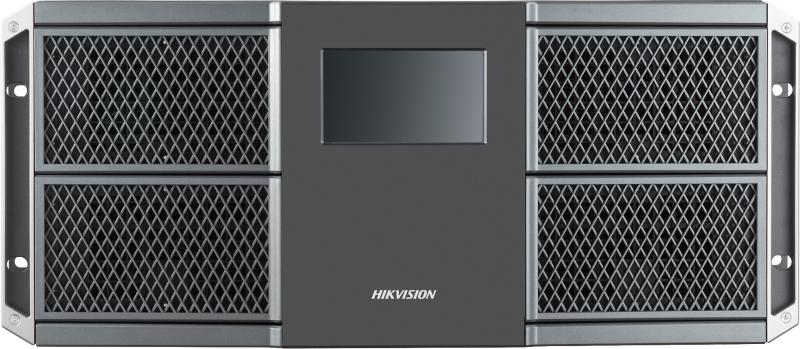

Hikvision Video Wall Controller Casing DS-C30S-S11

Specifications

Chassis Height: 4.5 U; Bus Type: 10 GB network switching; Signal Sampling Quality: YUV 444; Mixed Installation of Service Boards: Supported; Main Control Board Slot: 2; Service Board Slot: 11; Installed Main Control Boards: 1; Max. Input Slot: 10; Max. Output Slot: 10; Power Supply Slot: 3; Installed Power Supplies: 1; Fans: 4; Dual Device Hot Backup: Supported; USB Interface No.: 2 × USB 2.0; Serial Interface: 2 × Console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45, baud rate:115200, valid data bit: 8 bit); Screen Type: 4.3 inch non-touch screen, length × width: 105.42 mm × 67.07 mm (4.15 inch × 2.64 inch), resolution: 480 × 272; Power Interface: 100 VAC to 240 VAC, 50/60 Hz; Device Power Consumption: ≤ 550 W (full configuration); Working Temperature: 0 °C ~ 50 °C; Working Humidity: 10 ~ 90%; Management Network Interface: 2 × 10/100/1000 Mbps auto-sensing Ethernet interface (2 network ports on the switching board and 1 network port reserved on the main control board); Transmission Protocol: SDK, RTSP, ONVIF; Video Walls: 8; Video Wall Scale: 40; Split Window: Supported; Open Windows: 16; Input Source Copy Capability: Each output board can duplicate eight 2K images from the input source but the LED controller board does not have copy capability.; Window Division per Output Port: 1, 4, 6, 8, 9, 16; Layers Per Port: 8 × 1080p layers or 4 × 4K layers; Layers per Device: 512 (fully installed with the output boards); Scenes: 128; Scene Auto-Switch Delay: 400 ms; Plans: 128; Live View Resolution: 16-channel D1 or 32-channel CIF; 4-channel D1 or 16-channel CIF when previewing the image of a video wall on a client with all service boards installed in the device; UHD Fusions: ≤ 16; Background Image: Total: 8; One background image on each video wall.
Resolution: 16382 × 8192
Format: JGP, JPEG; Subtitles: Total: ≤ 12; Single video wall: ≤ 3; Input OSD: Supported; Input Image Clipping: Supported
200 pixel points on top, bottom, left, and right.; Local Signal Source Decoding Delay: 50 ms; Network Signal Source Decoding Delay: 200 ms; Display Video Wall Image: Supported; Net Weight: ≤ 33.39 kg (73.65 lb.)
Full configuration, including 21.84 kg (48.16 lb.) chassis and 1.05 kg (2.31 lb.) for each service board
(2.31 lb.) for each service board; Gross Weight: ≤ 51.32 kg (113.13 lb.)
Full configuration, including 29.1 kg (64.15 lb.) chassis and 2.02 kg (4.45 lb.) for each service board; Dimensions (W × H × D): 442 mm × 207.8 mm × 447 mm (17.4 inch × 8.18 inch × 17.59 inch); Packing List: 1 × grounding cable, 1 × audio adapter cable, 1 × serial port cable, 1 × AC power cord, 1 × power supply, 1 × regulatory compliance and safety information manual; Device Decoding Capability: 128 channels of 1080p 30 fps; Device Splicing Capability: 40 channels
