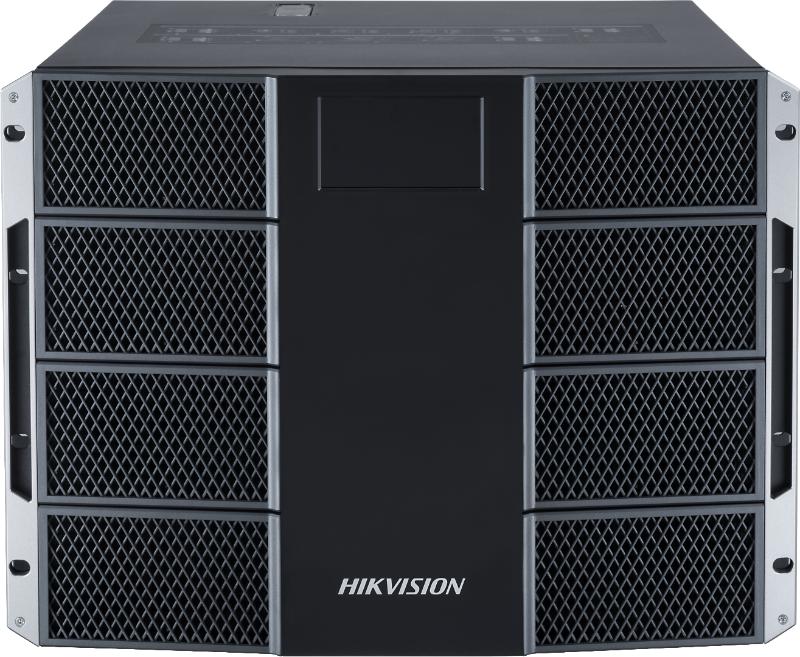

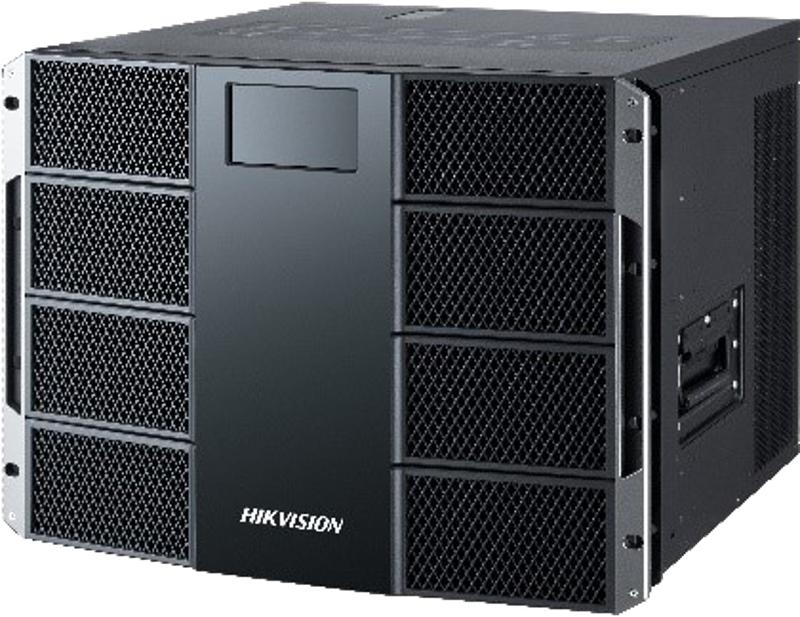

Hikvision Video Wall Controller Casing DS-C30S-S23

Specifications

Chassis Height: 8 U; Bus Type: 10 GB network switching; Signal Sampling Quality: YUV 444; Mixed Installation of Service Boards: Supported; Main Control Board Slot: 2; Service Board Slot: 23; Installed Main Control Boards: 1; Max. Input Slot: 22; Max. Output Slot: 22; Device Decoding Capability: Up to 8 decoding boards. Supports 128 channels of 1080p 30 fps and simultaneously decoding of 256 channels of network videos to the video wall.; Device Splicing Capability: 88 channels; Power Supply Slot: 3; Installed Power Supplies: 2; Fan: 6; Dual Device Hot Backup: Supported; USB Interface No.: 2 × USB 2.0; Serial Interface: 2 × Console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45, baud rate:115200, valid data bit: 8 bit); Screen Type: 4.3 inch non-touch screen, length × width: 105.42 mm × 67.07 mm (4.15 inch × 2.64 inch), resolution: 480 × 272; Power Interface: 100 VAC to 240 VAC, 50/60 Hz; Working Temperature: 0 °C ~ 50 °C; Working Humidity: 10 ~ 90%; Management Network Port: 2 × 10/100/1000 Mbps auto-sensing Ethernet interface (2 network ports on the switching board and 1 network port reserved on the main control board); Transmission Protocol: SDK, RTSP, ONVIF; Video Walls: 8; Video Wall Scale: 88; Split Window: Supported; Open Windows: 16; Window Division per Screen: 1, 4, 6, 8, 9, 16; Input Source Copy Capability: Each output board can duplicate eight 2K images from the input source but the LED controller board does not have copy capability.; Layers Per Screen: 8 × 1080p layers or 4 × 4K layers; Layers per Device: 512 (fully installed with the output boards); Scenes: 128; Scene Auto-Switch Delay: 400 ms; Plans: 128; Preview Resolution: 16-channel D1 or 32-channel CIF; 4-channel D1 or 16-channel CIF when previewing the image of a video wall on a client with all service boards installed in the device; UHD Fusions: ≤ 16; Background Image: Total: 8; One background image on each video wall.
Resolution: 16382 × 8192
Format: JGP, JPEG; Subtitles: Total: ≤ 12; Single video wall: ≤ 3; Input OSD: Supported; Input Image Clipping: Supported
200 pixel points on top, bottom, left, and right.; Local Signal Source Decoding Delay: 50 ms; Network Signal Source Decoding Delay: 200 ms; Signal Source Live View: Supported; Net Weight: ≤ 57.54 kg (126.87 lb.)
Full configuration, including 31.14 kg (68.65 lb.) chassis and 1.05 kg (2.31 lb.) for each service board; Gross Weight: ≤ 105.81 kg (233.48 lb.)
Full configuration, including 59.35 kg (130.88 lb.) chassis and 2.02 kg (4.45 lb.) for each service board; Dimensions (W × H × D): 442 mm × 354.8 mm × 447 mm (17.4 inch × 13.97 inch × 17.59 inch); Packing List: 1 × grounding cable, 1 × audio adapter cable, 1 × serial port cable, 1 × AC power cord, 2 × power supply, 1 × regulatory compliance and safety information manual; Power Consumption: ≤ 1000 W (full configuration)
