The Hikvision DS-PM1-O1H-WB is a wireless relay module for alarm systems. It is designed to control various devices, such as lights and garage doors, with the alarm system. The module is easy to install and is a reliable solution for enhancing the functionality of a security system.
Wireless Alarm

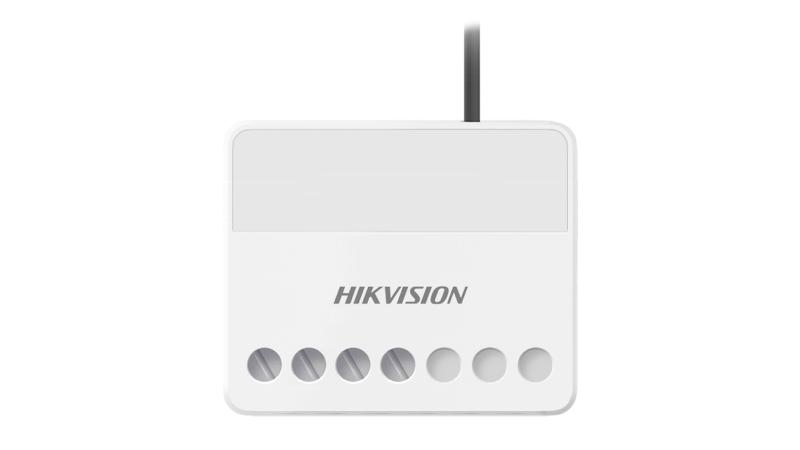

Hikvision Wall Switch DS-PM1-O1H-WB
Hikvision DS-PM1-O1H-WB wireless relay module. Controls lights and garage doors, enhancing the functionality of an alarm system.
Specifications
Scenario setting: By Alarm, By Operation, By Fault, By Schedule, By Manual; Learning button: 1, For register; Serial port: 1, for debug; LEDs status: 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue); Power supply: AC 100v – 240v, 50/60 HZ; Operation humidity: 10％~90％; Operation temperature: ﹣10℃~+55℃; RF frequency: 433MHz; RF method: Two way communication; RF modulation: 2GFSK; RF distance: 800m; Wireless security: AES-128; Installation method: Wall Mounting or Inside 86 box; Dimension(WxHxD): 38x25x18mm; Shell material: Plastic; Color: White; : 31.5g; Relay output: 1, NO/NC (AC 100~240v, Max 13A）
DataSheet
