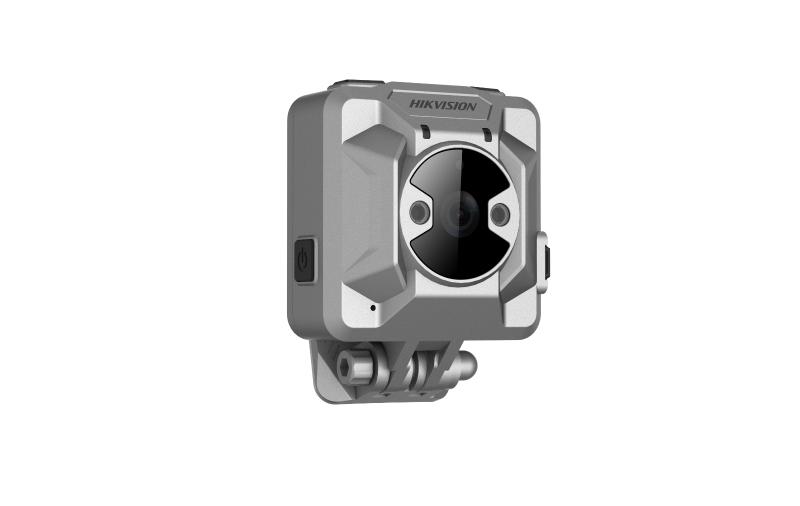

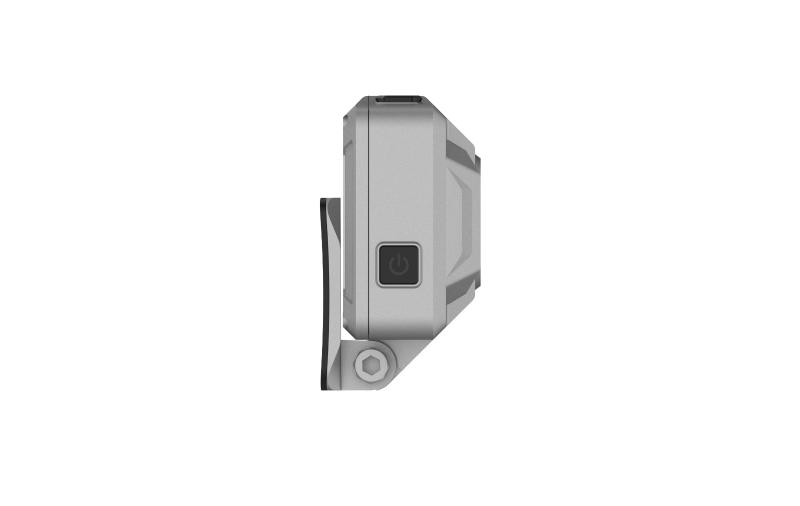

Hikvision Wi-Fi Helmet Camera DS-MCH208/32G/GLE

Specifications

CPU: Single core,
32 bit,
Main frequency: 0.96 GHz; Image Sensor: 1/3″ progressive scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.5 Lu×@ (F2.0, AGC ON); White Light: 2 white light(s); Focal Length: 4.15 mm; FOV: Horizontal FOV: 84°
Vertical FOV: 52°
Diagonal FOV: 102°; Aperture: F2.0; Video Format: PS, MP4; Sub Stream: 30 fps (720 × 576); Video Compression: H.264, H.265; Main Stream: 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576); Audio Compression for Video Recording: G722_1,AAC; Audio Compression for Group Intercom: G711_A,G711_MU,G722_1; Audio Bit Rate: G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps); Image Format: JPEG; Image Resolution: 5 MP,
16 MP,
30 MP,
40 MP; RAM: 128 MB; ROM: 32 GB; Bluetooth: BT4.0; Wi-Fi Frequency Band: 2.412 to 2.472 GHz; Cellular Network: Only available for models with /GLE:
FDD -LTE: B1/B3/B5/B7/B8/B20
TDD -LTE: B38/B40/B41; Positioning Mode: GPS; Wi-Fi Protocol: 802.11 a/b/g/n; Protocol: HTTPS, RTSP, NTP, FTP; API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP; Encryption: AES128，AES256; Watermark: Supported; Audio Type: 1 built-in mic(s),1 speaker(s); Indicator: 2 Indicator(s) for Charging/Working/Recording; SIM Card: Only available for models with /GLE :1 (Nano-SIM); Button: Power, Picture capture, SoS; Charging Interface: Type-C; USB: USB 2.0; Laser Positioning: Supported; Basic Event: SOS alarm; Smart Event: Fall detection; Operating System: Linux; Power: 5 VDC, 2.0 A, max. 10 W; Client: HikCentral Pro, HikCentral Master Lite; Speaker: 1 Built-in speaker, Max. power consumption: 1.3 W, Max. sound pressure level: 96dB (10 cm); MIC: Supported; Gyroscope: Supported; Operating Condition: Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Humidity: 90% or less (non-condensing); Dimension: 55 mm × 55 mm × 31 mm (2.2″ × 2.2″ × 1.2″); : 110 g (without mounting) (0.24 lb.); Vibration Motor: Not supported; Battery Duration: Up to 12 h in 720p resolution¹; Capacity: 3300 mAh; Battery Type: Lithium-ion battery, integral; Charging Time: ≤ 4 h; RF: EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);; EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; Safety: CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018
CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006; Protection: IP67; Warranty: 2 years for the device without battery, 1 year for the battery
