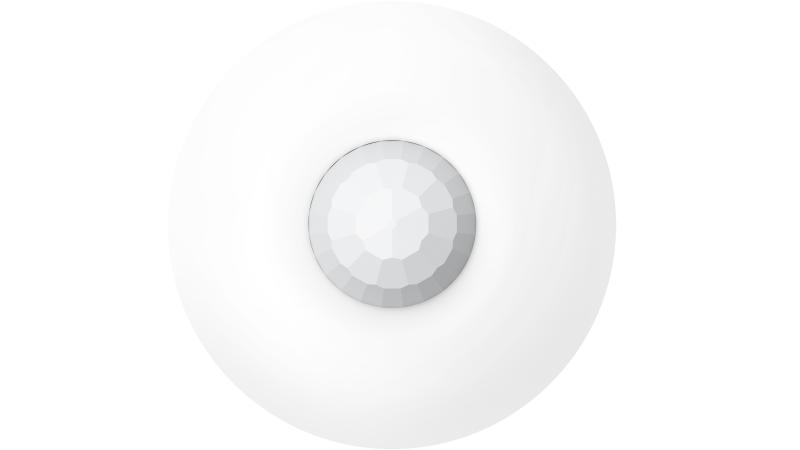

Hikvision Wired PIR Ceiling Detector DS-PDCL12-EG2

Specifications

Detection range: 12m; Detection angle: 360°; Detection zones: 172; Detectable speed: 0.3～2m/s; Sensitivity: Low,Auto; White light filter: 6500lux; Digital temperature compensation: Support; Creep zone protection: Support; Digital processing: Support; Sealed optics: Support; Tamper protection: Front; LED indicator: Blue(Alarm); Power supply: 9 to 16 VDC; Typical voltage: 12 VDC; Operation temperature: -10 °C to 55 °C (14 °F to 131 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F); Operation humidity: 10% to 90%; Dimension(W×H×D): φ101.2 mm x 32.9 mm; : 79g; Mounting height: 2.4 to 4m; Mounting method: Ceiling; Application scenario: Indoor; Alarm output: Normally Closed; Power consumption: Maximum current：13mA @12VDC
Quiescent current：7mA@12VDC
