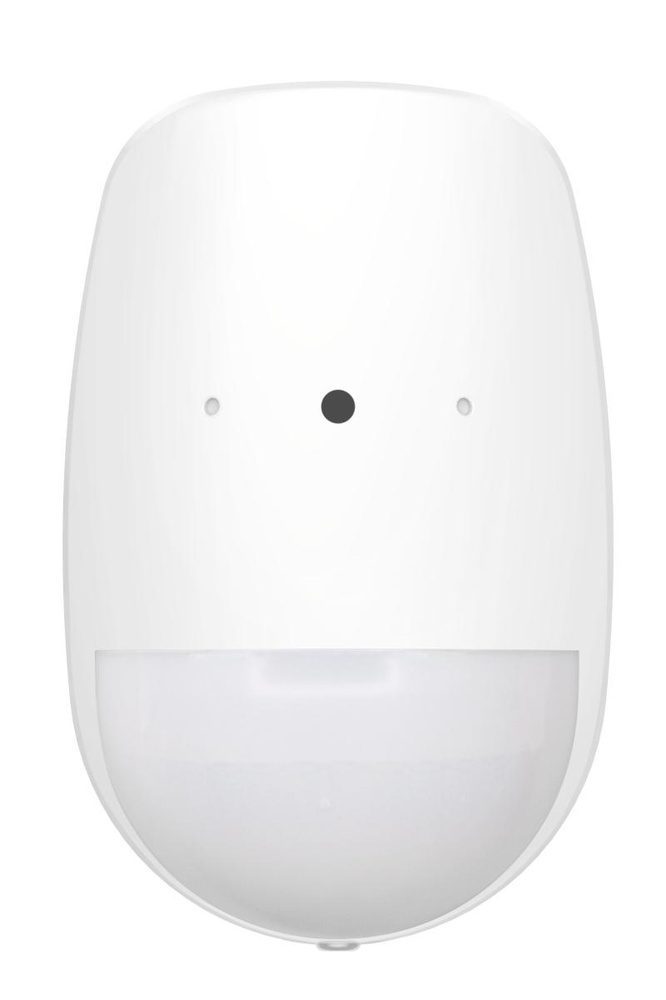

Hikvision Wired PIR-Glass Break Detector DS-PDPG12P-EG2

Specifications

Detection Method: Passive Infrared;Acoustic Sensor; Detection Range: 12m; Detection Angle: 85.9°; Detection Zones: 52; Detectable Speed: 0.3～2m/s; Pet Immunity: 30Kg; PIR Sensitivity: Auto,Pet; White Light Filter: 6500lux; Glass Break Range: 8m; Glass Type: Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing; Glass Break Sensitivity: Potentiometer Adjustment; Glass Thickness: 2.4mm to 6.4mm; Digital Temperature Compensation: Support; Glass Size: 0.3m x 0.3m to 3m x 3m; Creep Zone Protection: Support; Digital Processing: Support; Sealed Optics: Support; Tamper Protection: Front; Alarm Output: Normally Closed; LED Indicator: Green(PIR),Red(BG),Blue(alarm); Transmission Method: Wired; Power Supply: 9 to 16 VDC; Typical Voltage: 12 VDC; Power Consumption: Maximum current：26mA @12VDC
Quiescent current：36mA@12VDC; Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F); Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F); Operation Humidity: 10% to 90%; Dimension(WxHxD): 65.5mm×103mm×48.5mm; : 98.5g; Mounting Height: 1.8 to 2.4m; Mounting Method: Wall; Application Scenario: Indoor; Bracket: Optional Wall & Ceiling Accessory
