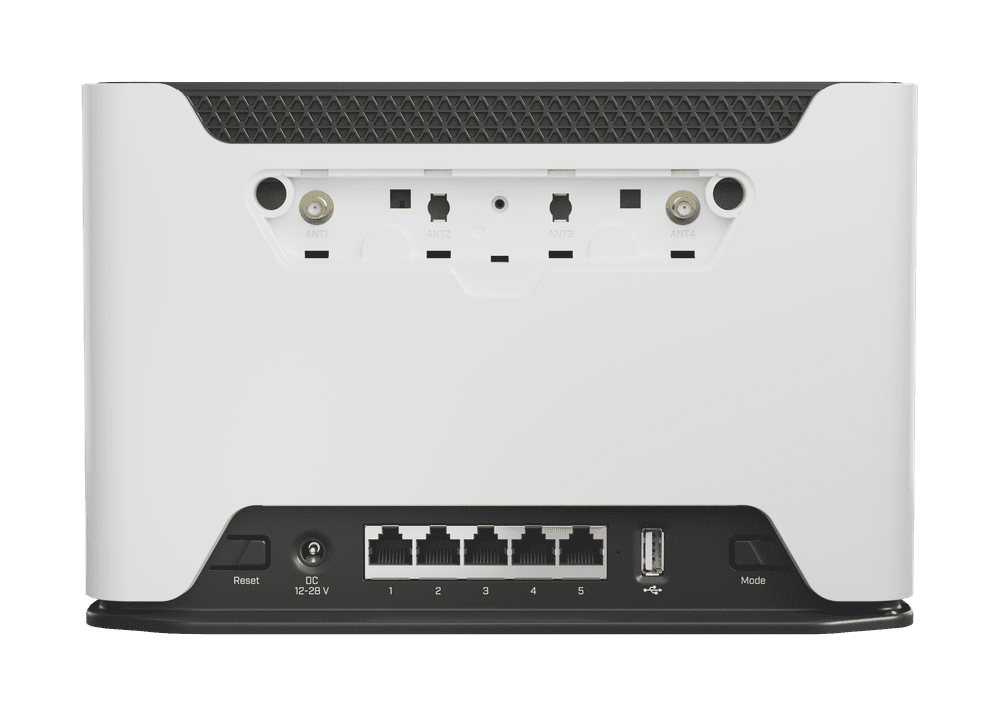

MikroTik Chateau LTE12 (2025)

Specifications

{
“Specifications – Product code”: “D53G-5HacD2HnD-TC&EG120K-EA”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “IPQ-4019”,
“Specifications – CPU core count”: “4”,
“Specifications – CPU nominal frequency”: “448-896 (auto) MHz”,
“Specifications – Switch chip model”: “IPQ-4019”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “32 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-20°C to 70°C”,
“Specifications – IPsec hardware acceleration”: “Yes”,
“Specifications – Suggested price”: “$179.00”,
“Powering – Number of DC inputs”: “1 (DC jack)”,
“Powering – DC jack input Voltage”: “12-28 V”,
“Powering – Max power consumption”: “24 W”,
“Powering – Max power consumption without attachments”: “18 W”,
“Powering – Cooling type”: “Passive”,
“Mobile – 3G Category”: “R8 (42.2Mbps Downlink, 5.76Mbps Uplink)”,
“Mobile – 3G bands”: “3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)”,
“Mobile – LTE Category”: “12 (600Mbps Downlink, 150Mbps Uplink)”,
“Mobile – MIMO DL”: “4×4”,
“Mobile – MIMO UL”: “1×1”,
“Mobile – LTE FDD bands”: “1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)”,
“Mobile – LTE TDD bands”: “40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz)”,
“Mobile – TAC”: “86642205”,
“Wireless specifications – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless specifications – Wireless 2.4 GHz number of chains”: “2”,
“Wireless specifications – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless specifications – Antenna gain dBi for 2.4 GHz”: “2”,
“Wireless specifications – Wireless 2.4 GHz chip model”: “IPQ-4019”,
“Wireless specifications – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Wireless specifications – Wireless 5 GHz Max data rate”: “867 Mbit/s”,
“Wireless specifications – Wireless 5 GHz number of chains”: “2”,
“Wireless specifications – Wireless 5 GHz standards”: “802.11a/n/ac”,
“Wireless specifications – Antenna gain dBi for 5 GHz”: “4”,
“Wireless specifications – Wireless 5 GHz chip model”: “IPQ-4019”,
“Wireless specifications – Wireless 5 GHz generation”: “Wi-Fi 5”,
“Ethernet – 10/100/1000 Ethernet ports”: “5”,
“Peripherals – Number of SIM slots”: “1 Modem (Micro SIM)”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Other – Mode button”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “20”,
“Wireless specifications – 1MBit/s”: “25”,
“Wireless specifications – 11MBit/s”: “25”,
“Wireless specifications – 6MBit/s”: “26”,
“Wireless specifications – 54MBit/s”: “22”,
“Wireless specifications – MCS0”: “26”,
“Wireless specifications – MCS7”: “21”,
“Wireless specifications – MCS9”: “19”
}
