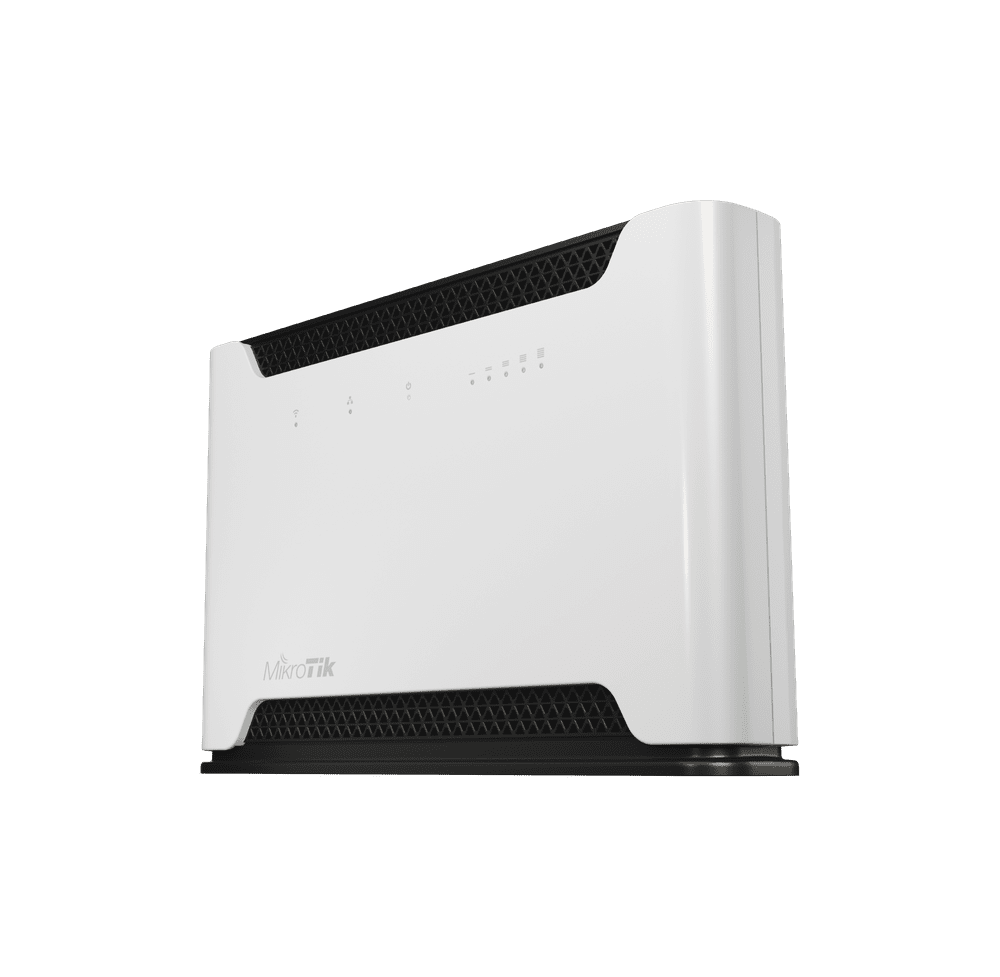

Experience fast and reliable internet with the MikroTik Chateau LTE6-US, available at Beyond Innovate. This US carrier-certified home access point combines high-speed wireless connectivity with a powerful CAT6 LTE modem, making it ideal for both urban and rural environments.
The Chateau LTE6-US features a responsive CAT6 LTE modem, delivering speeds up to 300 Mbps with carrier aggregation. This significantly improves performance in crowded areas and boosts efficiency in weaker signal zones. It also includes 5 Gigabit Ethernet ports for robust wired connections and a full-sized USB port for external storage.
This dual-band access point supports 802.11ac/a/n (5GHz) and 802.11b/g/n (2.4GHz) wireless standards. Its powerful quad-core ARM CPU ensures smooth operation for demanding tasks. Running MikroTik’s advanced RouterOS, the Chateau LTE6-US offers enterprise-level features at consumer-friendly pricing. Manage VPNs, firewall rules, parental controls, and more.
Choose the MikroTik Chateau LTE6-US for a versatile and powerful home networking solution. It provides dependable internet access and advanced management capabilities for any household.
Specifications
{
“Specifications – Product code”: “D53G-5HacD2HnD-TC&EG06-A”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “IPQ-4019”,
“Specifications – CPU core count”: “4”,
“Specifications – CPU nominal frequency”: “488-896 (auto) MHz”,
“Specifications – Switch chip model”: “IPQ-4019”,
“Specifications – Dimensions”: “240 x 156 x 44 mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$189.00”,
“Powering – Number of DC inputs”: “1 (DC jack)”,
“Powering – DC jack input Voltage”: “12-28 V”,
“Powering – Max power consumption”: “19 W”,
“Powering – Max power consumption without attachments”: “14.3 W”,
“Powering – Cooling type”: “Passive”,
“Mobile – 3G Category”: “R8 (42.2Mbps Downlink, 5.76Mbps Uplink)”,
“Mobile – 3G bands”: “2 (1900MHz) / 5 (850MHz) / 4 (1700MHz)”,
“Mobile – LTE Category”: “6 (300Mbit/s Downlink, 50Mbit/s Uplink)”,
“Mobile – LTE FDD bands”: “2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 7 (2600MHz) / 12 (700MHz) / 13 (700 MHz) / 25 (1900MHz) / 26 (850MHz) / 30 (2300 MHz) / 66 (1700MHz) / 29 (700 MHz)”,
“Wireless specifications – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless specifications – Wireless 2.4 GHz number of chains”: “2”,
“Wireless specifications – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless specifications – Antenna gain dBi for 2.4 GHz”: “3”,
“Wireless specifications – Wireless 2.4 GHz chip model”: “IPQ-4019”,
“Wireless specifications – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Wireless specifications – Wireless 5 GHz Max data rate”: “867 Mbit/s”,
“Wireless specifications – Wireless 5 GHz number of chains”: “2”,
“Wireless specifications – Wireless 5 GHz standards”: “802.11a/n/ac”,
“Wireless specifications – Antenna gain dBi for 5 GHz”: “5.5”,
“Wireless specifications – Wireless 5 GHz chip model”: “IPQ-4019”,
“Wireless specifications – Wireless 5 GHz generation”: “Wi-Fi 5”,
“Ethernet – 10/100/1000 Ethernet ports”: “5”,
“Peripherals – Number of SIM slots”: “1 Modem (Micro SIM)”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Other – Mode button”: “Yes”,
“Certification & Approvals – Certification”: “CE, FCC, EAC, ROHS”,
“Wireless specifications – 1MBit/s”: “25”,
“Wireless specifications – 11MBit/s”: “25”,
“Wireless specifications – 6MBit/s”: “26”,
“Wireless specifications – 54MBit/s”: “22”,
“Wireless specifications – MCS0”: “26”,
“Wireless specifications – MCS7”: “21”,
“Wireless specifications – MCS9”: “19”
}
