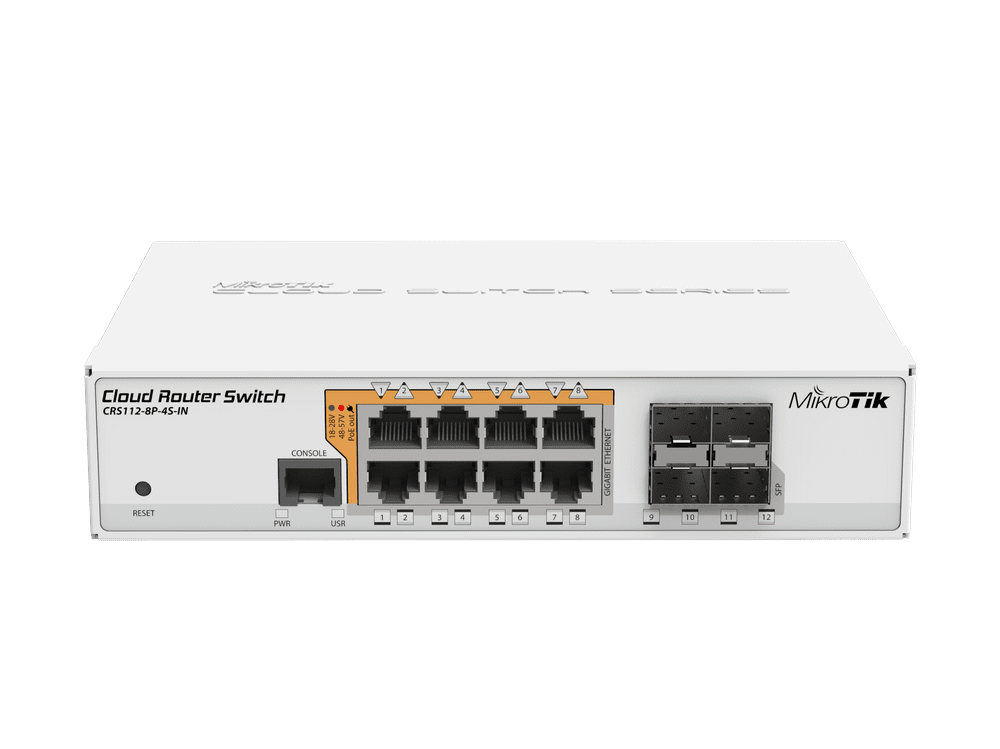

The MikroTik CRS112-8P-4S-IN is a powerful Cloud Router Switch. It is perfectly designed for flexible network solutions. This versatile device features eight Gigabit Ethernet ports. All these ports offer versatile PoE-out options. It supports auto-sensing 802.3af/at PoE/PoE+. It also supports Passive PoE. This makes it highly compatible with various powered devices. Additionally, it includes four 1 Gigabit SFP cages. These provide robust fiber optic connectivity. The SFP ports enable reliable uplinks. They also extend network reach over longer distances. The switch delivers impressive non-blocking throughput.
MikroTik CRS112-8P-4S-IN runs MikroTik’s powerful RouterOS. This offers both advanced routing and switching capabilities. Users can configure a wide array of Layer 2 features. These include VLANs, port isolation, and port security. Broadcast storm control features are also available. Traffic mirroring and bandwidth limitation are supported. The switch includes a 400 MHz CPU and 128 MB of RAM. A passive cooling design ensures silent operation.
This MikroTik switch excels in diverse applications. It is perfect for powering IP cameras or wireless access points. It efficiently manages data flow across many connected devices. Its compact form factor allows flexible desktop placement. Rackmount ears are included for easy rack installation.
Specifications
{
“Specifications – Product code”: “CRS112-8P-4S-IN”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA8511”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “400 MHz”,
“Specifications – Switch chip model”: “QCA8511”,
“Specifications – Dimensions”: “200 x 142 x 44 mm”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “128 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-20°C to 60°C”,
“Specifications – Suggested price”: “$209.00”,

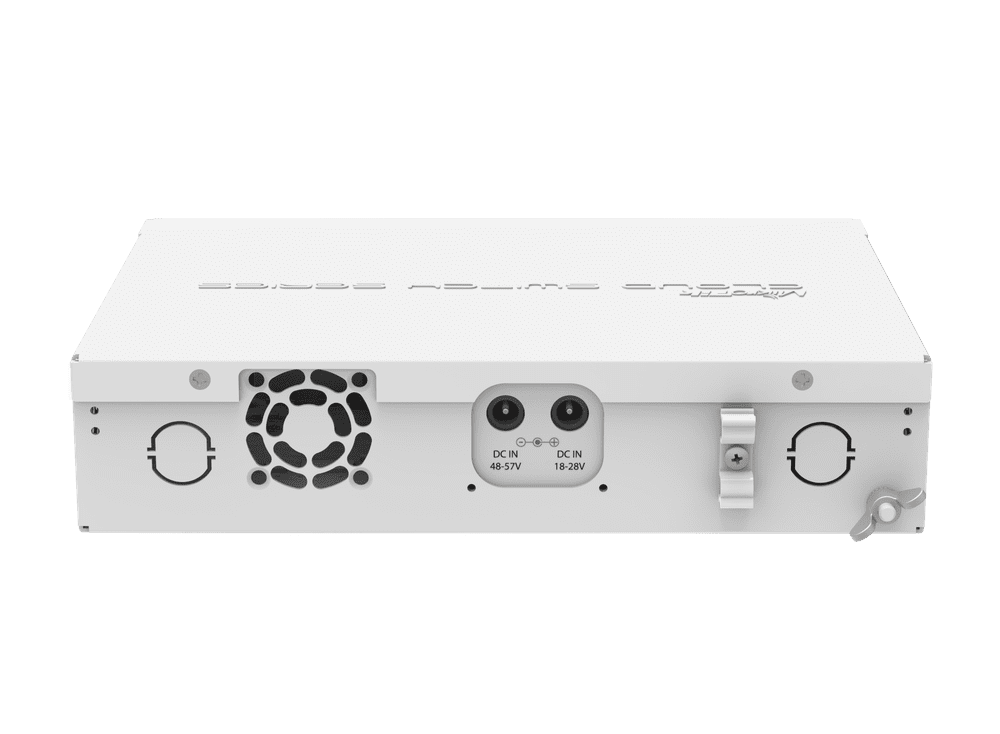

“Powering – Number of DC inputs”: “2 (DC jack)”,
“Powering – DC jack input Voltage”: “18-28 V / 48-57 V”,
“Powering – Max power consumption”: “160 W”,
“Powering – Max power consumption without attachments”: “10 W”,
“Powering – Cooling type”: “Passive”,
“PoE-out – PoE-out ports”: “Ether1-Ether8”,
“PoE-out – PoE out”: “802.3af/at”,
“PoE-out – Max out per port output (input 18-30 V)”: “1 A”,
“PoE-out – Max out per port output (input 30-57 V)”: “450 mA”,
“PoE-out – Max total out (A)”: “2.8A (18V-28V) & 1.4A (48V-57V) A”,
“Ethernet – 10/100/1000 Ethernet ports”: “8”,
“Ethernet – Number of 1G Ethernet ports with PoE-out”: “8”,
“Fiber – SFP ports”: “4”,
“Peripherals – Serial console port”: “RJ45”,
“Other – PCB temperature monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”
}
