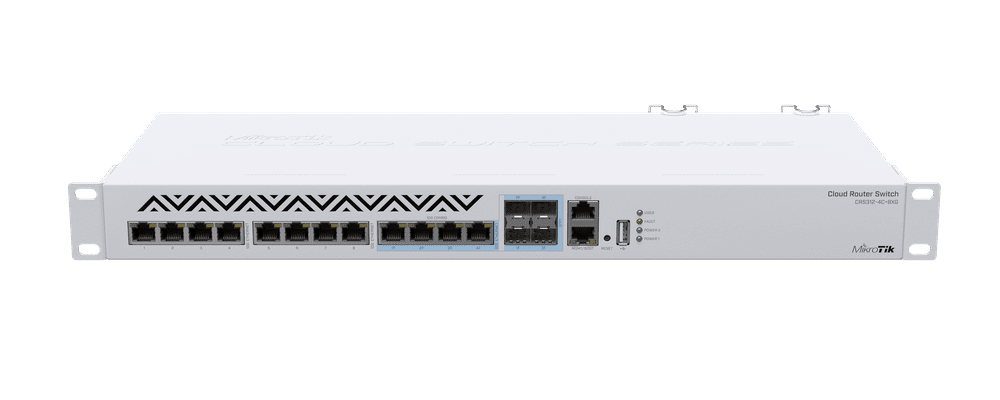

The MikroTik CRS312-4C+8XG-RM is a powerful cloud router switch. It is perfectly designed for high-speed 10 Gigabit environments. This robust device features eight dedicated 10 Gigabit Ethernet RJ45 ports.
It also includes four versatile combo ports. These function as either 10 Gigabit SFP+ or 10 Gigabit Ethernet RJ45. This unique configuration provides extreme flexibility.
It allows both copper and fiber connections. The switch delivers an impressive non-blocking throughput. This reaches 240 Gigabits per second. Its total switching capacity is 480 Gigabits per second. The forwarding rate is 357 million packets per second.
This ensures very efficient data processing. It is an ideal upgrade for demanding setups. This includes data centers and large enterprise networks.
Managing the MikroTik CRS312-4C+8XG-RM is straightforward. It features a full-size USB port for quick configuration access. This simplifies initial setup and troubleshooting tasks. The device includes a dual hot-swappable power supply.
This design ensures maximum uptime. It provides crucial redundancy for continuous operation. Users can choose their preferred operating system. The switch supports both RouterOS and SwOS.
Specifications
{
“Specifications – Product code”: “CRS312-4C+8XG-RM”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Switch chip model”: “98DX8212”,
“Specifications – Dimensions”: “443 x 183 x 44 mm”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS v7 / SwitchOS”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-30°C to 70°C”,
“Specifications – Suggested price”: “$699.00”,
“Powering – Number of AC inputs”: “2”,
“Powering – AC input range”: “100-240”,
“Powering – Frequency (Hz)”: “50-60”,
“Powering – Max power consumption”: “60 W”,
“Powering – Cooling type”: “4 fans”,
“Ethernet – 10/100 Ethernet ports”: “1”,
“Ethernet – Number of Combo 10G Ethernet/ SFP+ ports”: “4”,
“Ethernet – Number of 1G/2.5G/5G/10G Ethernet ports”: “8”,
“Peripherals – Serial console port”: “RJ45”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Other – Voltage Monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “20”
}
