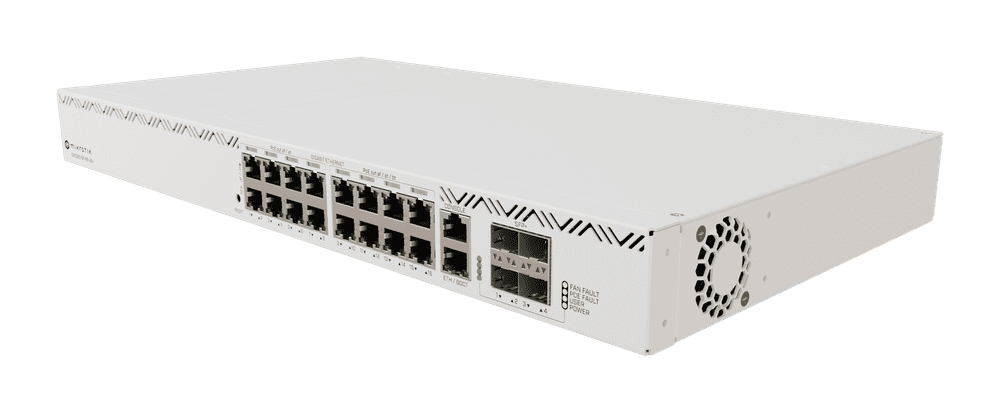

Experience unparalleled power and simplified cable management with the MikroTik CRS320-8P-8B-4S+RM Cloud Router Switch. Beyond Innovate proudly offers MikroTik’s first high-power PoE++ (802.3bt) switch, designed to meet the demanding needs of hotels, conference halls, offices, and high-rise buildings.
The CRS320-8P-8B-4S+RM is a robust and versatile 1U rackmount switch, featuring:
17 Gigabit Ethernet ports:
8 ports (Ether1-Ether8) with 802.3af/at (PoE/PoE+) output.
8 ports (Ether9-Ether16) with high-power 802.3bt (PoE++) output, capable of delivering up to 90W per port for even the most demanding devices like 4K security cameras with heating elements or LED ad screens.
An additional Gigabit Ethernet port for dedicated management.
4 x 10G SFP+ fiber ports: Provide high-speed uplinks for critical network connections and future-proof your infrastructure.
At its core, this switch utilizes the phenomenal Marvell 98DX226S switch-chip, known for handling heavy loads, including VLAN-filtering and hardware-offloaded Layer-3 routing, ensuring efficient data processing and network segmentation.
The CRS320-8P-8B-4S+RM comes with a reliable 600W power supply, and for even greater power demands, an expansion slot is reserved for an additional PSU, increasing the total power output to an impressive 1150W. This ensures you have ample power for all your connected devices, eliminating the need for numerous separate power adapters.
Specifications
{
“Specifications – Product code”: “CRS320-8P-8B-4S+RM”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “98DX226S”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – Switch chip model”: “98DX226S”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS v7 / SwitchOS”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “32 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-10°C to 50°C”,
“Specifications – Suggested price”: “$489.00”,
“Powering – Number of AC inputs”: “1”,
“Powering – AC input range”: “100-240”,
“Powering – Number of PSU slots”: “2”,
“Powering – Frequency (Hz)”: “50-60”,
“Powering – Max power consumption”: “600W (1150W with additional PSU)”,
“Powering – Max power consumption without attachments”: “36 W”,
“Powering – Cooling type”: “3 fans”,
“PoE-out – PoE-out ports”: “Ether1-Ether8 (af/at), Ether9-Ether16 (bt)”,
“PoE-out – PoE out”: “802.3af/at/bt”,
“PoE-out – Max out per port output (input 30-57 V)”: “560 (af/at) / 1667 (bt) mA”,
“PoE-out – Max total out (A)”: “17.82 A”,
“PoE-out – Total output current”: “17.82”,
“PoE-out – Total output power”: “963”,
“Ethernet – 10/100/1000 Ethernet ports”: “17”,
“Ethernet – Number of 1G Ethernet ports with PoE-out”: “16”,
“Fiber – SFP+ ports”: “4”,
“Peripherals – Serial console port”: “RJ45”,
“Other – CPU temperature monitor”: “Yes”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “20”
}
