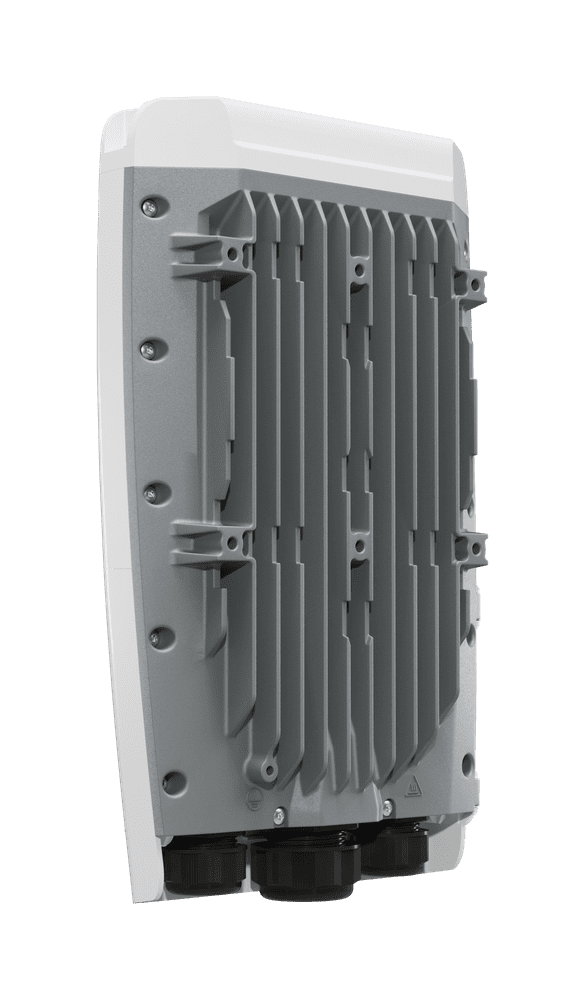

The MikroTik FiberBox Plus is a highly robust outdoor switch. It is perfectly designed for extreme environments. This durable device features four 10 Gigabit SFP+ ports. These provide lightning-fast fiber connections. It also includes one Gigabit Ethernet port. This port can be used for management or power. The FiberBox Plus boasts an IP66 weatherproof enclosure. This protects it from powerful water jets.
MikroTik FiberBox Plus supports dual-boot capability. Users can choose between RouterOS v7 and SwOS. RouterOS offers comprehensive Layer 3 routing features. SwOS provides simpler Layer 2 switching capabilities. This flexibility allows customization. The switch is powered by a modern 800 MHz ARM CPU. It has 256 MB of RAM. Multiple power inputs offer great versatility.
This MikroTik switch excels in diverse outdoor applications. It is perfect for connecting mast devices or remote locations. It efficiently manages high-bandwidth data over long distances. Its rugged design supports substantial data amounts. This ensures seamless communication and data flow. The FiberBox Plus integrates easily into existing fiber infrastructures. It also serves as a strong foundation for new outdoor deployments.
Specifications
{
“Specifications – Product code”: “CRS305-1G-4S+OUT”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “98DX226S”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – Switch chip model”: “98DX226S”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS v7 / SwOS”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$229.00”,
“Powering – Number of DC inputs”: “3 (PoE-IN, DC jack, 2-pin terminal)”,
“Powering – DC jack input Voltage”: “24-57 V”,
“Powering – 2-pin terminal input Voltage”: “24-57 V”,
“Powering – Max power consumption”: “17 W”,
“Powering – Max power consumption without attachments”: “7 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “42-57 V”,
“Ethernet – 10/100/1000 Ethernet ports”: “1”,
“Fiber – SFP+ ports”: “4”,
“Peripherals – Serial console port”: “RJ45”,
“Other – CPU temperature monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP66”
}
