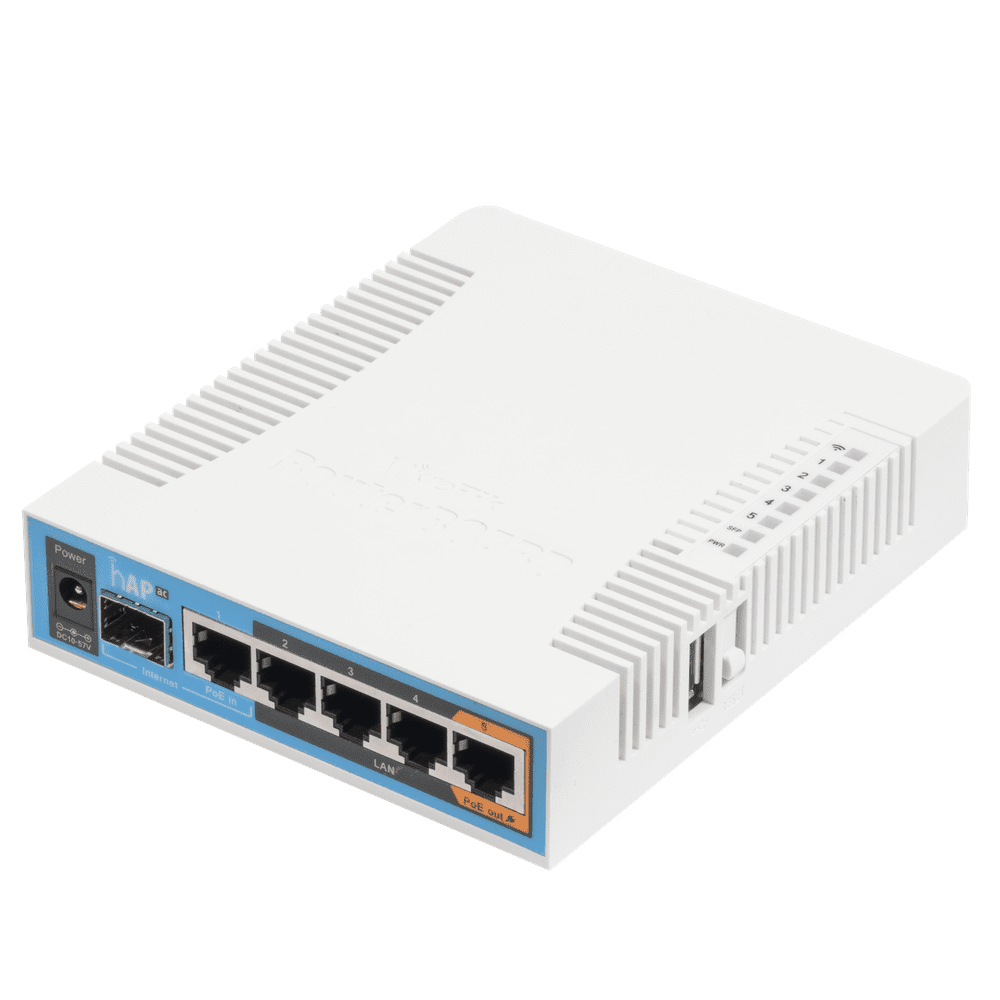

Elevate your home or office network with the MikroTik hAP ac, the universal wireless device designed for optimal performance, available at Beyond Innovate. This dual-band router combines high-speed Wi-Fi with robust wired connectivity.
The hAP ac leverages 802.11ac technology, providing fast speeds on the 5 GHz band (up to 1300 Mbps) while maintaining compatibility with older devices on both 2.4 GHz (up to 450 Mbps) and 5 GHz bands. Its triple-chain wireless configuration ensures excellent coverage and reliable connections for all your mobile devices.
Equipped with five Gigabit Ethernet ports, the hAP ac delivers full wired speeds for your most demanding devices. It also features an SFP cage for connecting active or passive optical network modules, expanding your connectivity options. A convenient USB port allows for additional storage or a 3G/4G modem.
Specifications
{
“Specifications – Product code”: “RB962UiGS-5HacT2HnT”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9558”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “720 MHz”,
“Specifications – Switch chip model”: “QCA8337”,
“Specifications – Dimensions”: “114 x 137 x 29mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “128 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$129.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “450 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “3”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “2.5”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “QCA9558”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Wireless capabilities – Wireless 5 GHz Max data rate”: “1300 Mbit/s”,
“Wireless capabilities – Wireless 5 GHz number of chains”: “3”,
“Wireless capabilities – Wireless 5 GHz standards”: “802.11a/n/ac”,
“Wireless capabilities – Antenna gain dBi for 5 GHz”: “2”,
“Wireless capabilities – Wireless 5 GHz chip model”: “QCA9880”,
“Wireless capabilities – Wireless 5 GHz generation”: “Wi-Fi 5”,
“Wireless capabilities – WiFi speed”: “AC1750”,
“Ethernet – 10/100/1000 Ethernet ports”: “5”,
“Fiber – SFP ports”: “1”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Powering – Number of DC inputs”: “2 (DC jack, PoE-IN)”,
“Powering – DC jack input Voltage”: “11-57 V”,
“Powering – Max power consumption”: “17 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “11-57 V”,
“PoE-out – PoE-out ports”: “Ether5”,
“PoE-out – PoE out”: “Passive PoE”,
“PoE-out – Max out per port output (input 18-30 V)”: “700 mA”,
“PoE-out – Max out per port output (input 30-57 V)”: “350 mA”,
“PoE-out – Max total out (A)”: “700 mA”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Other – Beeper”: “Yes”,
“Wireless specifications – 1MBit/s”: “29”,
“Wireless specifications – 11MBit/s”: “29”,
“Wireless specifications – 6MBit/s”: “28”,
“Wireless specifications – 54MBit/s”: “25”,
“Wireless specifications – MCS0”: “28”,
“Wireless specifications – MCS7”: “24”,
“Wireless specifications – MCS9”: “21”
}
