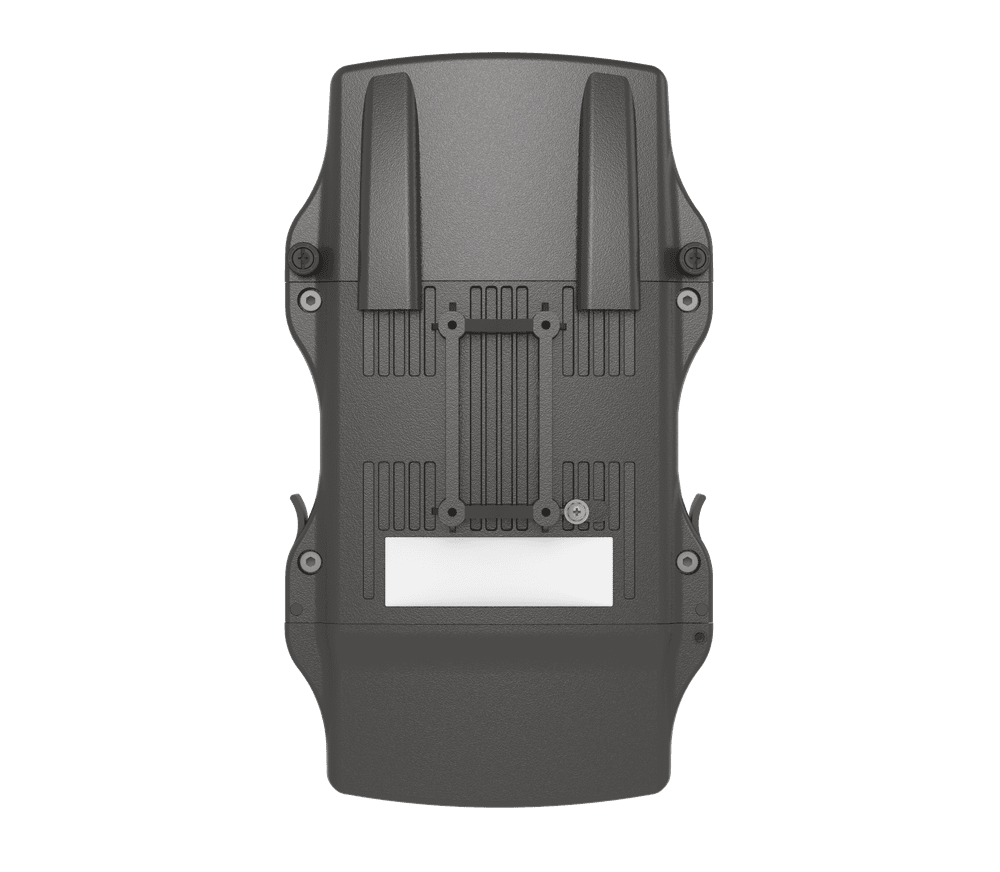

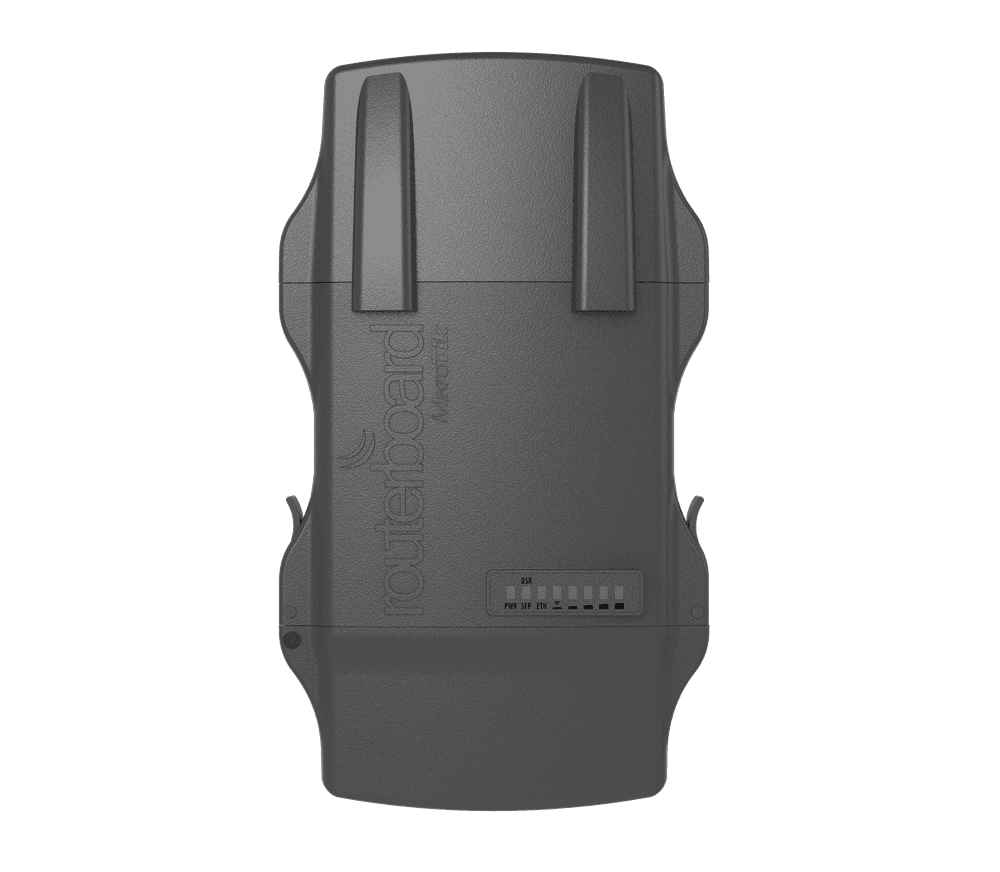

MikroTik NetMetal 5

Specifications

{
“Specifications – Product code”: “RB922UAGS-5HPacD-NM”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9557”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “720 MHz”,
“Specifications – Dimensions”: “143x247x48mm (PCB)”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “128 MB”,
“Specifications – Storage size”: “128 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$149.00”,
“Powering – Number of DC inputs”: “1 (PoE-IN)”,
“Powering – Max power consumption”: “19 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “8-30 V”,
“Wireless specifications – Wireless 5 GHz Max data rate”: “867 Mbit/s”,
“Wireless specifications – Wireless 5 GHz number of chains”: “2”,
“Wireless specifications – Wireless 5 GHz standards”: “802.11a/n/ac”,
“Wireless specifications – Wireless 5 GHz chip model”: “QCA9882”,
“Wireless specifications – Wireless 5 GHz generation”: “Wi-Fi 5”,
“Ethernet – 10/100/1000 Ethernet ports”: “1”,
“Fiber – SFP DDMI”: “yes”,
“Fiber – SFP ports”: “1”,
“Peripherals – Number of SIM slots”: “1 Modem (Mini SIM)”,
“Peripherals – MiniPCI-e slots”: “1”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Other – Beeper”: “Yes”,
“Certification & Approvals – Certification”: “FCC, IC”,
“Certification & Approvals – IP”: “IP54”,
“Wireless specifications – 6MBit/s”: “31”,
“Wireless specifications – 54MBit/s”: “27”,
“Wireless specifications – MCS0”: “30”,
“Wireless specifications – MCS7”: “27”,
“Wireless specifications – MCS9”: “22”
}
