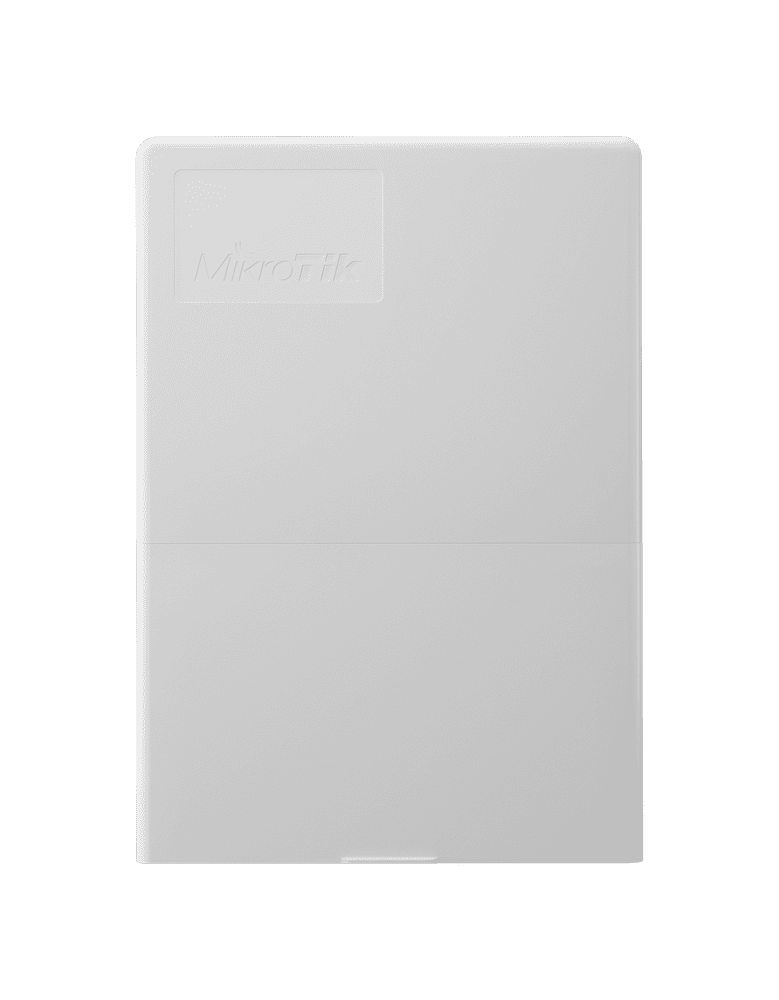

The MikroTik netPower 15FR is an innovative outdoor switch. It is specifically designed for flexible power solutions. This robust device features sixteen 10/100 Mbps Fast Ethernet ports. Fifteen of these ports offer unique reverse PoE-in capabilities. This allows the switch to efficiently draw power from connected client devices. The remaining Ethernet port provides passive PoE-out. This can power another compatible PoE device. It also includes two 1 Gigabit SFP ports. These provide high-speed fiber uplinks for core connections. The switch boasts an IP54 weatherproof enclosure.
MikroTik netPower 15FR supports dual-boot capability. Users can choose between RouterOS and SwOS. RouterOS offers comprehensive Layer 3 routing features. SwOS provides simpler Layer 2 switching capabilities. This flexibility allows extensive customization. The device delivers impressive non-blocking throughput. This reaches 3.6 Gigabits per second.
This MikroTik switch excels in diverse outdoor applications. It is perfect for the GPEN concept. This simplifies internet delivery to individual apartments. It efficiently powers and manages many client connections. Its sturdy design supports substantial data amounts. This ensures seamless communication and data flow. The netPower 15FR integrates easily into existing outdoor infrastructures.
Specifications
{
“Specifications – Product code”: “CRS318-1Fi-15Fr-2S-OUT”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “98DX224S”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – Switch chip model”: “98DX224S”,
“Specifications – Dimensions”: “304 x 212 x 71 mm”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS / SwitchOS”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$169.00”,
“Powering – Number of DC inputs”: “16 (PoE-IN, DC jack)”,
“Powering – DC jack input Voltage”: “18-57 V”,
“Powering – Max power consumption”: “29 W”,
“Powering – Max power consumption without attachments”: “10 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “18-57 V (recommended 36-57V)”,
“PoE-out – PoE-out ports”: “Ether15”,
“PoE-out – PoE out”: “Passive PoE”,
“Ethernet – 10/100 Ethernet ports”: “16”,
“Fiber – SFP ports”: “2”,
“Other – CPU temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP54”
}
