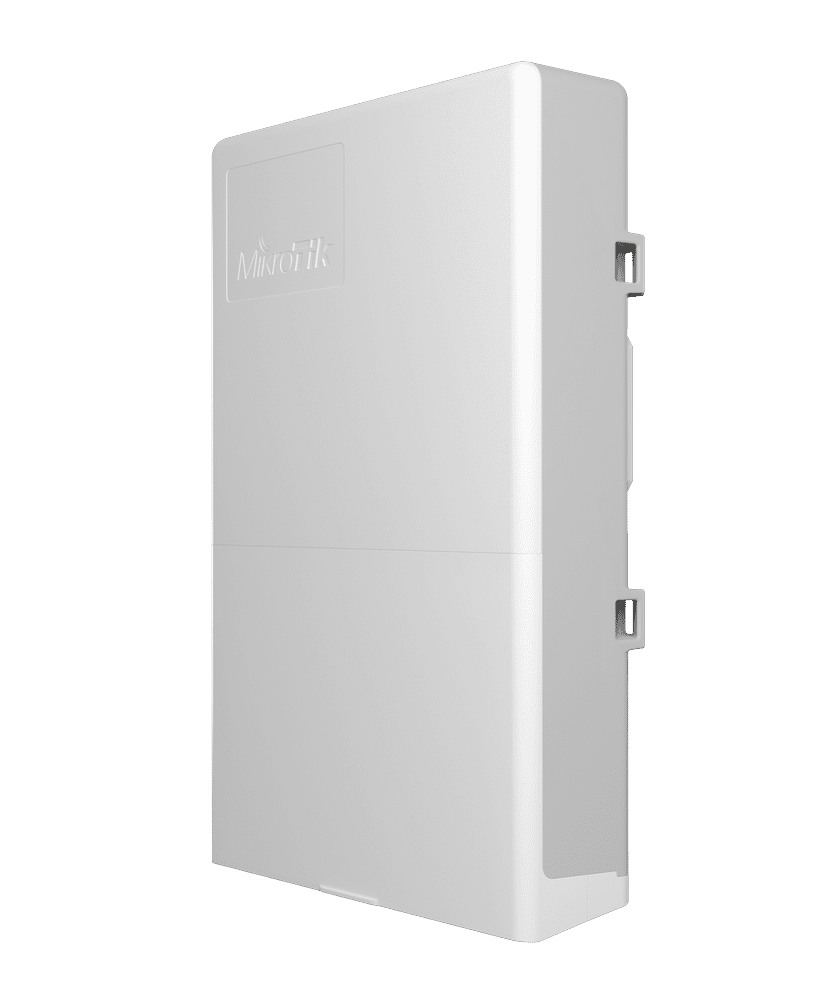

The MikroTik netPower Lite 7R is an innovative outdoor switch. It revolutionizes network deployments, especially for ISPs. This robust device features eight Gigabit Ethernet ports. Seven of these ports offer unique reverse PoE-in capabilities. This allows the switch to draw power from connected clients. The eighth Ethernet port provides passive PoE-out. This can power another compatible device. It also includes two 10 Gigabit SFP+ ports.
Managing the MikroTik netPower Lite 7R is straightforward. It runs MikroTik’s dedicated SwOS Lite operating system. This system is optimized for core switch functions. SwOS is easily configurable through a user-friendly web-based GUI. This provides intuitive control over network settings. The device delivers impressive non-blocking throughput. This reaches 28 Gigabits per second. Its total switching capacity is 56 Gigabits per second.
This MikroTik switch excels in diverse outdoor applications. It is perfect for the GPEN concept. This simplifies internet delivery to individual apartments. It efficiently manages data flow across many client connections. Its sturdy design supports substantial data amounts. This ensures seamless communication and data flow. The netPower Lite 7R integrates easily into existing outdoor infrastructures.
Specifications
{
“Specifications – Product code”: “CSS610-1Gi-7R-2S+OUT”,
“Specifications – Switch chip model”: “88E6193X”,
“Specifications – Dimensions”: “304 x 212 x 71 mm”,
“Specifications – Operating System”: “SwitchOS Lite”,
“Specifications – Storage size”: “64 KB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$139.00”,
“Powering – Number of DC inputs”: “3 (PoE-IN, DC jack, 2-pin terminal)”,
“Powering – DC jack input Voltage”: “12-57 V”,
“Powering – 2-pin terminal input Voltage”: “12-57 V”,
“Powering – Max power consumption”: “29 W”,
“Powering – Max power consumption without attachments”: “7 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “12-57 V”,
“PoE-out – PoE-out ports”: “Ether8”,
“PoE-out – PoE out”: “Passive PoE”,
“PoE-out – Max out per port output (input 18-30 V)”: “600 mA”,
“PoE-out – Max out per port output (input 30-57 V)”: “450 mA”,
“PoE-out – Max total out (A)”: “600 mA”,
“Ethernet – 10/100/1000 Ethernet ports”: “8”,
“Ethernet – Number of 1G Ethernet ports with Reverse PoE (PoE-in)”: “7”,
“Ethernet – Number of 1G Ethernet ports with PoE-out”: “1”,
“Fiber – SFP+ ports”: “2”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP54”
}
