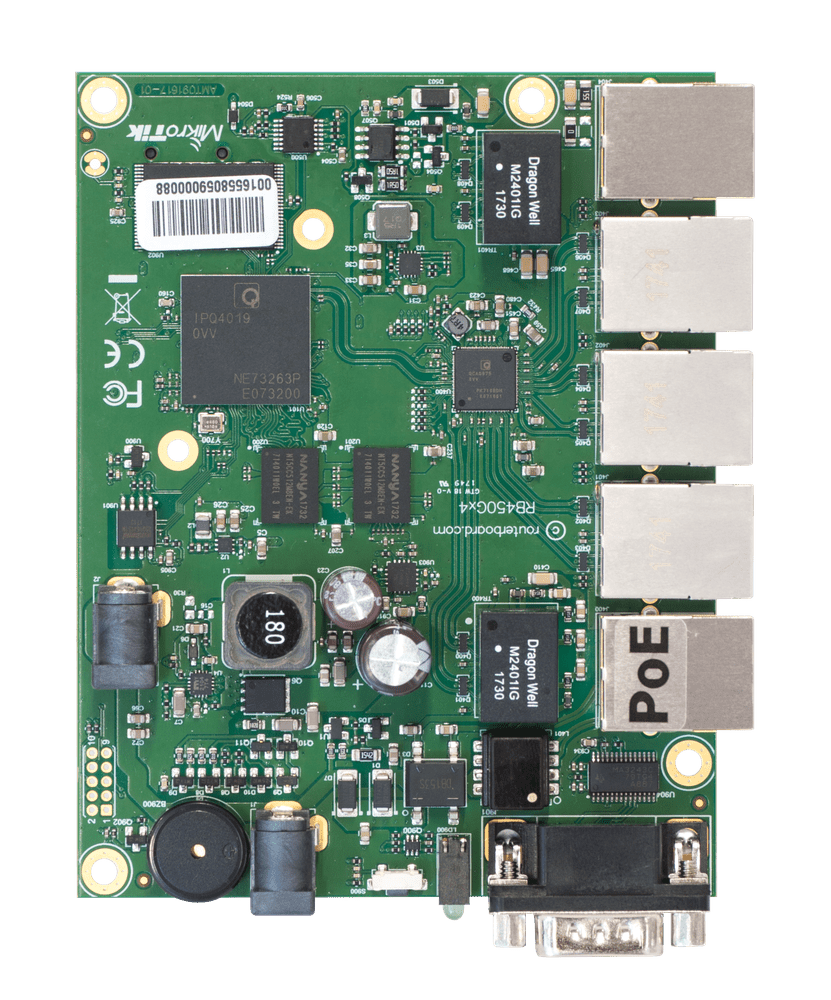

The MikroTik RB450Gx4 is a versatile Ethernet router. It features a powerful quad-core ARM CPU. This CPU operates at 716MHz. The device includes 1GB of RAM. It also has 512MB of NAND storage. A microSD card slot offers expandable storage.
This router boasts five Gigabit Ethernet ports. It also includes a serial port. The RB450Gx4 supports hardware IPsec encryption. This ensures secure data transmission. It runs on MikroTik’s RouterOS. This operating system provides advanced routing capabilities. It can function as a sophisticated router, firewall, or bandwidth manager.
The RB450Gx4 offers flexible power options. It supports 10V to 57V input. This can be via two power jacks. Alternatively, it uses PoE (802.3af/at or passive PoE). Ethernet port #5 provides PoE output. This allows powering other devices. The board comes without an enclosure. Its form factor matches previous RB450 and RB850 series. This ensures compatibility with existing cases.
Specifications
{
“Specifications – Product code”: “RB450Gx4”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “IPQ-4019”,
“Specifications – CPU core count”: “4”,
“Specifications – CPU nominal frequency”: “448-896 (auto) MHz”,
“Specifications – Switch chip model”: “IPQ-4019”,
“Specifications – Dimensions”: “90 x 116 mm”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “1 GB”,
“Specifications – Storage size”: “512 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – IPsec hardware acceleration”: “Yes”,
“Specifications – Suggested price”: “$99.00”,
“Powering – Number of DC inputs”: “3 (PoE-IN, DC jack)”,
“Powering – DC jack input Voltage”: “10-57 V”,
“Powering – Max power consumption”: “16 W”,
“Powering – Max power consumption without attachments”: “4 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “12-57 V”,
“PoE-out – PoE-out ports”: “Ether5”,
“PoE-out – PoE out”: “Passive PoE”,
“PoE-out – Max out per port output (input 18-30 V)”: “500 mA”,
“PoE-out – Max out per port output (input 30-57 V)”: “500 mA”,
“PoE-out – Max total out (A)”: “500 mA”,
“Ethernet – 10/100/1000 Ethernet ports”: “5”,
“Peripherals – Memory card type”: “microSD”,
“Peripherals – Serial console port”: “RS232”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Other – Beeper”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP00”
}
