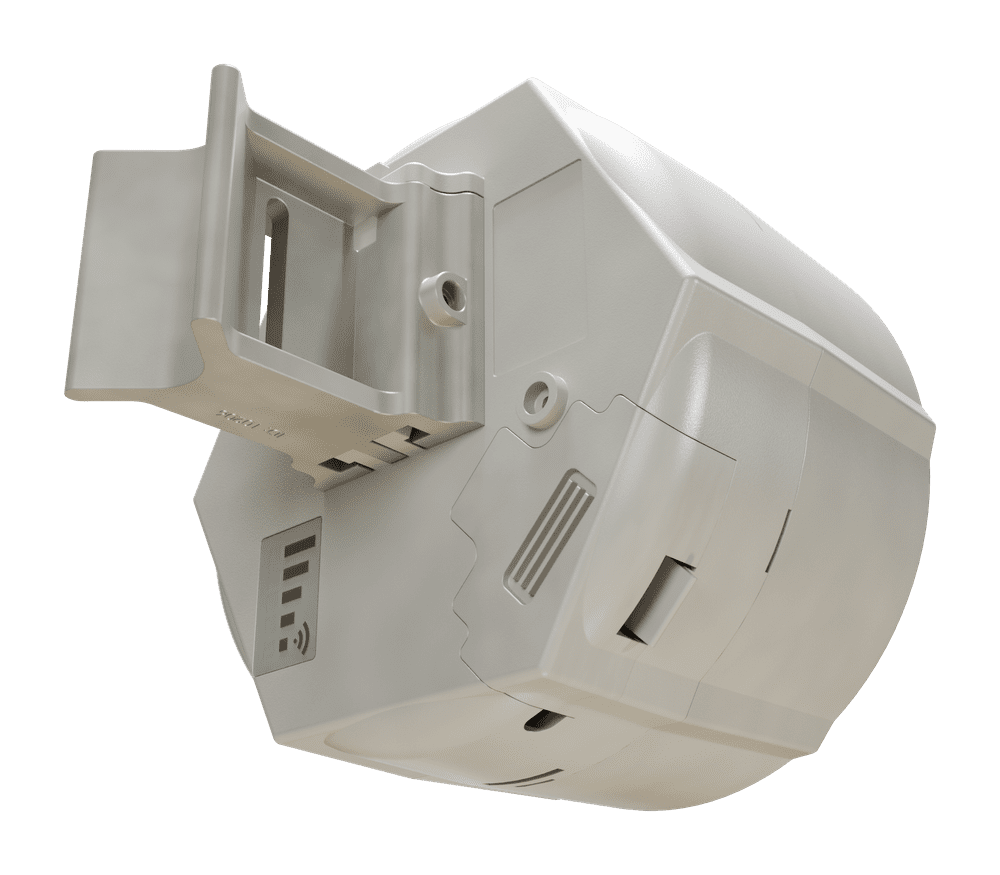

MikroTik SXT LTE6 kit

MikroTik SXT R LTE router. High-gain antenna, Gigabit port, and integrated LTE Cat 6 modem for long-range wireless.

SKU: SXTR&FG621-EAr3 Category: Brand:
Guaranteed Safe Checkout

SXT LTE6 kit is an update of our timeless_x000D_device for remote locations that are within_x000D_cellular network coverage. It features the same_x000D_modern Category 6 LTE chip that you might_x000D_have seen in our latest devices – like the_x000D_popular Chateau LTE6 ax! Not only this LTE_x000D_chip can provide reliable Internet connectivity_x000D_for your building even where cell phones fail, it_x000D_also allowed us to drive the price for this kit way_x000D_down. Mount an SXT outside your home –_x000D_and always stay connected!

Specifications

{
“Specifications – Product code”: “SXTR&FG621-EA”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Switch chip model”: “QCA9531”,
“Specifications – RouterOS license”: “3”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 60°C”,
“Specifications – Suggested price”: “$119.00”,
“Powering – Number of DC inputs”: “1 (PoE-IN)”,
“Powering – Max power consumption”: “22 W”,
“Powering – Max power consumption without attachments”: “5 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “12-57 V”,
“PoE-out – PoE-out ports”: “Ether2”,
“PoE-out – PoE out”: “Passive PoE up to 57V”,
“PoE-out – Max out per port output (input 18-30 V)”: “600 mA”,
“PoE-out – Max out per port output (input 30-57 V)”: “400 mA”,
“PoE-out – Max total out (A)”: “600 mA”,
“Mobile – 3G Category”: “R8 (42.2Mbps Downlink, 11.2Mbps Uplink)”,
“Mobile – 3G bands”: “3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)”,
“Mobile – LTE Category”: “6 (300Mbit/s Downlink, 50Mbit/s Uplink)”,
“Mobile – MIMO DL”: “2×2”,
“Mobile – MIMO UL”: “1×1”,
“Mobile – LTE FDD bands”: “5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 1 (2100MHz) / 3 (1800MHz) / 28 (700MHz)”,
“Mobile – LTE TDD bands”: “38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)”,
“Mobile – TAC”: “86335904”,
“Ethernet – 10/100 Ethernet ports”: “2”,
“Peripherals – Number of SIM slots”: “2 Modem (Micro SIM)”,
“Peripherals – MiniPCI-e slots”: “1”,
“Other – Mode button”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “54”
}

DataSheet

Click Here for the DataSheet
