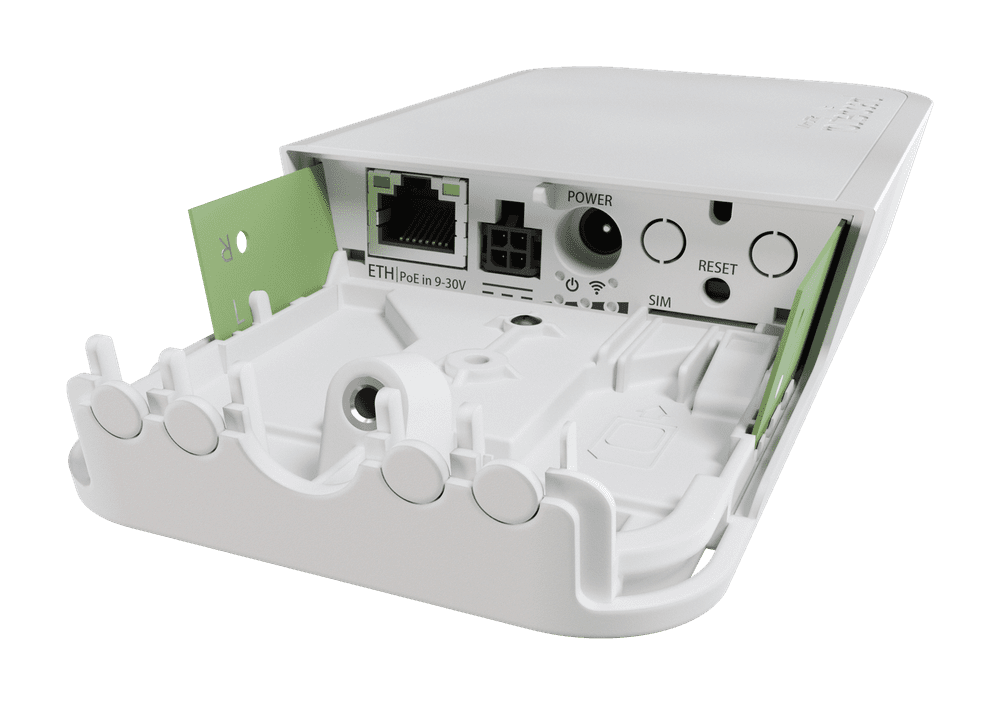

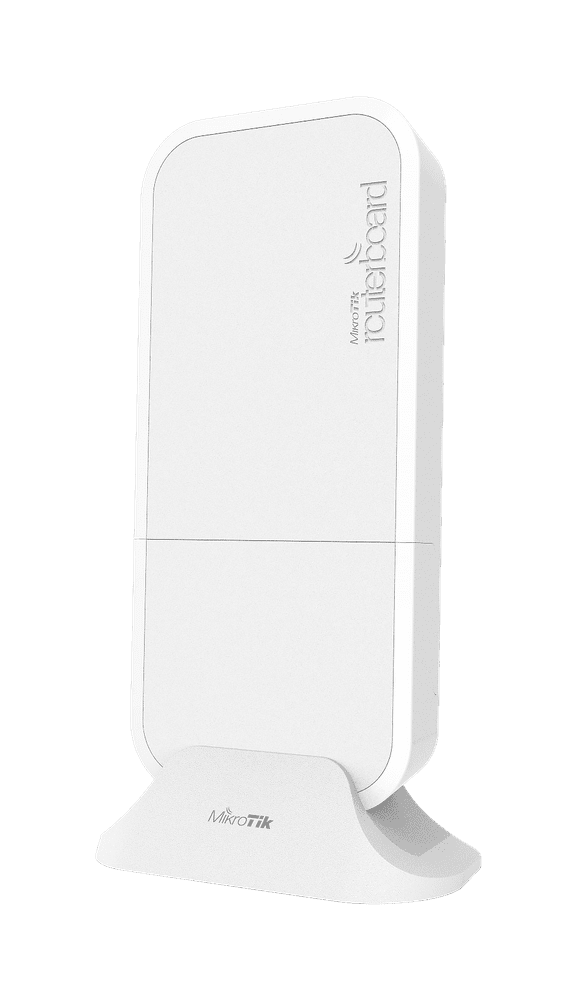

MikroTik wAP LTE kit (2024)

Specifications

{
“Specifications – Product code”: “wAPR-2nD&EC200A-EU”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 60°C”,
“Specifications – Suggested price”: “$99.00”,
“Powering – Number of DC inputs”: “3 (PoE-IN, DC jack, Automotive)”,
“Powering – DC jack input Voltage”: “9-30 V”,
“Powering – Automotive input Voltage”: “9-30 V”,
“Powering – Max power consumption”: “7 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “9-30 V”,
“Mobile – 2G Category”: “Class12”,
“Mobile – 2G bands”: “8 (900MHz) / 3 (1800MHz)”,
“Mobile – 3G Category”: “R7 (21Mbps Downlinks, 5.76Mbps Uplink)”,
“Mobile – 3G bands”: “5 (850MHz) / 8 (900MHz) / 1 (2100MHz)”,
“Mobile – LTE Category”: “4 (150Mbps Downlink, 50Mbps Uplink)”,
“Mobile – LTE FDD bands”: “20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)”,
“Mobile – LTE TDD bands”: “40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz)”,
“Mobile – TAC”: “86314105”,
“Wireless specifications – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless specifications – Wireless 2.4 GHz number of chains”: “2”,
“Wireless specifications – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless specifications – Antenna gain dBi for 2.4 GHz”: “2”,
“Wireless specifications – Wireless 2.4 GHz chip model”: “QCA9531”,
“Wireless specifications – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Ethernet – 10/100 Ethernet ports”: “1”,
“Peripherals – Number of SIM slots”: “1 Modem (Mini SIM)”,
“Peripherals – MiniPCI-e slots”: “1”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, E-MARK, EAC, ROHS”,
“Certification & Approvals – IP”: “54”
}
